Description

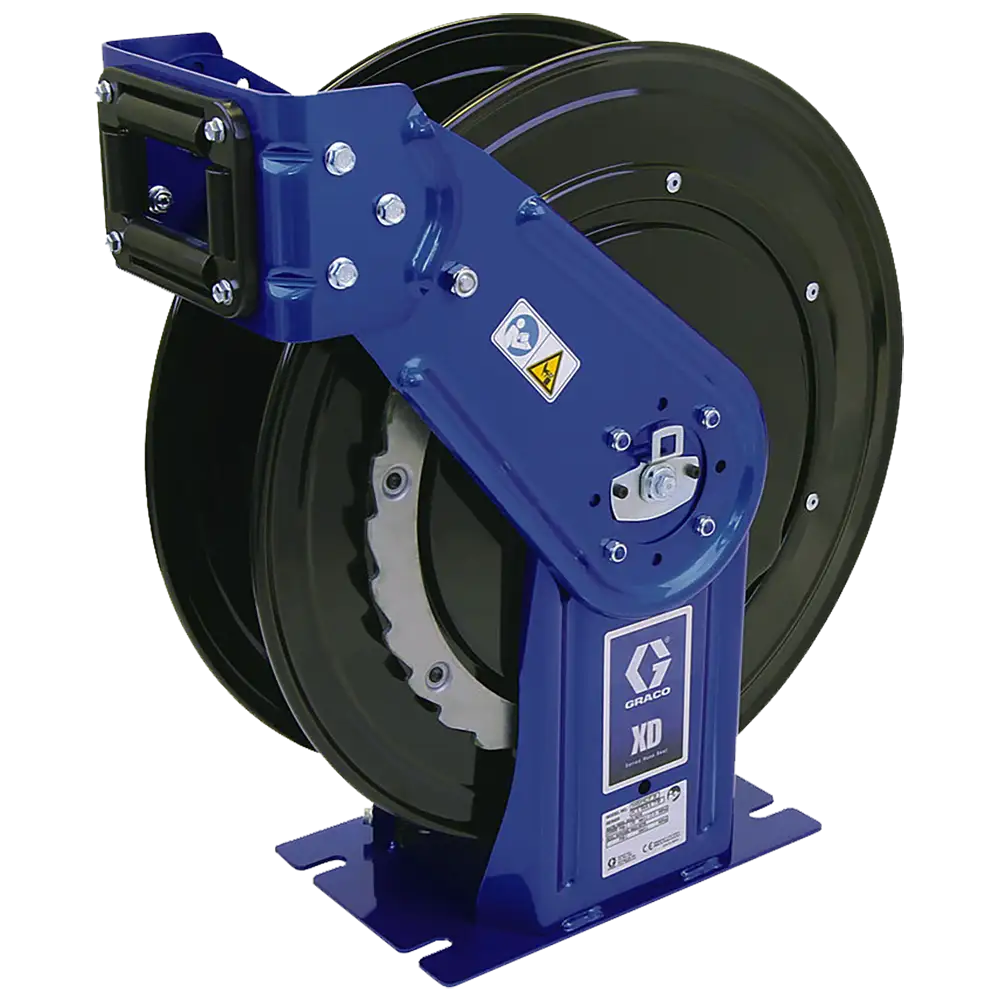

The Graco XD30 Oil Hose Reel (Part HSMCFB) provides high-capacity hose management for demanding industrial applications. Its compact design makes it perfect for areas where space is limited but heavy-duty performance is essential.
Engineered for oil dispensing systems, the XD30 series supports petroleum- and synthetic-based oils, diesel fuel, air, water, and more. This reel’s rugged construction and baked-on metallic blue enamel finish resist corrosion, ensuring years of dependable operation in indoor and outdoor environments.
The reel’s full-flow swivel design maximizes fluid delivery while minimizing pressure drop, allowing faster fill times and smoother operation. Additionally, its spring tension adjustment feature lets technicians fine-tune retraction strength without depressurizing the system.
Technicians will appreciate the optional adjustable arm, which allows flexible installation in truck, bench, or wall-mounted configurations. The compact pedestal design holds hoses up to 75 feet, making it a versatile choice for automotive, fleet, mining, and construction service facilities.
Features & Specifications
- Compact pedestal design for tight-space installations
- Spring adjustment allows tension changes under pressure
- Full-flow swivel reduces pressure drop and increases efficiency
- Baked-on metallic blue enamel finish resists corrosion
- Optional adjustable arm for flexible mounting configurations
- Handles petroleum and synthetic oils, diesel, air, and water
- 1/2″ (13 mm) inlet and outlet sizes
- Maximum working pressure: 2000 psi
- Hose capacity: 1/2″ x 75 ft (13 mm x 23 m)
- Frame type: Enclosed
- Thread type: NPT
- Dry weight: 98 lbs (44.5 kg)
- Overall dimensions: 23.1″ H x 22.1″ L x 9″ W
- Manufacturer’s Part Number: HSMCFB
