Description

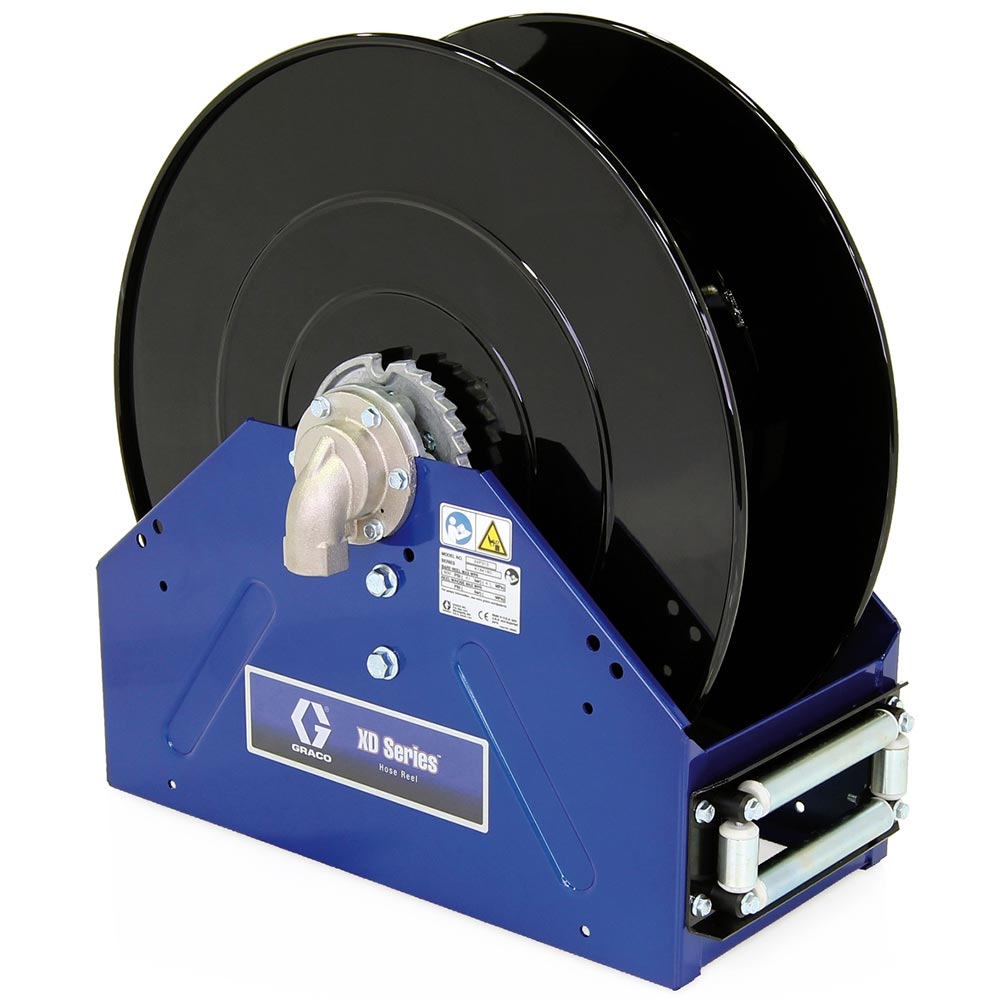

The Graco XD40 Hose Reel 24P320 is engineered for technicians who demand consistent, heavy-duty performance. This reel supports petroleum and synthetic oils with a robust box-frame design and high-pressure tolerance. It’s built to perform in the most demanding fleet and maintenance environments.
Additionally, it features a full-flow swivel that minimizes pressure drop and boosts flow speed. This improves throughput in high-volume service bays. The bare reel is metallic blue, rated for 2000 psi, and offers a 1-inch NPT inlet and outlet. Its rugged spool and welded ribbed frame ensure longevity in extreme indoor or outdoor conditions.
Features & Specifications
- Durable box-frame reel construction for demanding environments
- Supports petroleum and synthetic-based oil transfer
- Full-flow swivel minimizes pressure drop for faster fills
- Rated for up to 2000 psi working pressure
- 1 in (25.4 mm) NPT inlet and outlet
- Handles hose capacity up to 1 in x 50 ft (25 mm x 15 m)
- Bare reel design for custom hose installation
- Compatible with truck or bench mounting only
- Corrosion-resistant metallic blue finish
- Dry weight: 125 lbs (56.7 kg); Shipping weight: 151 lbs (68.5 kg)
- Dimensions: 26.4 in L x 16.54 in W x 26.13 in H
- UPC: 633955379725
- Country of Origin: United States
- HTS Code (US): 8479899560
- Manufacturer Part Number: 24P320
