Description

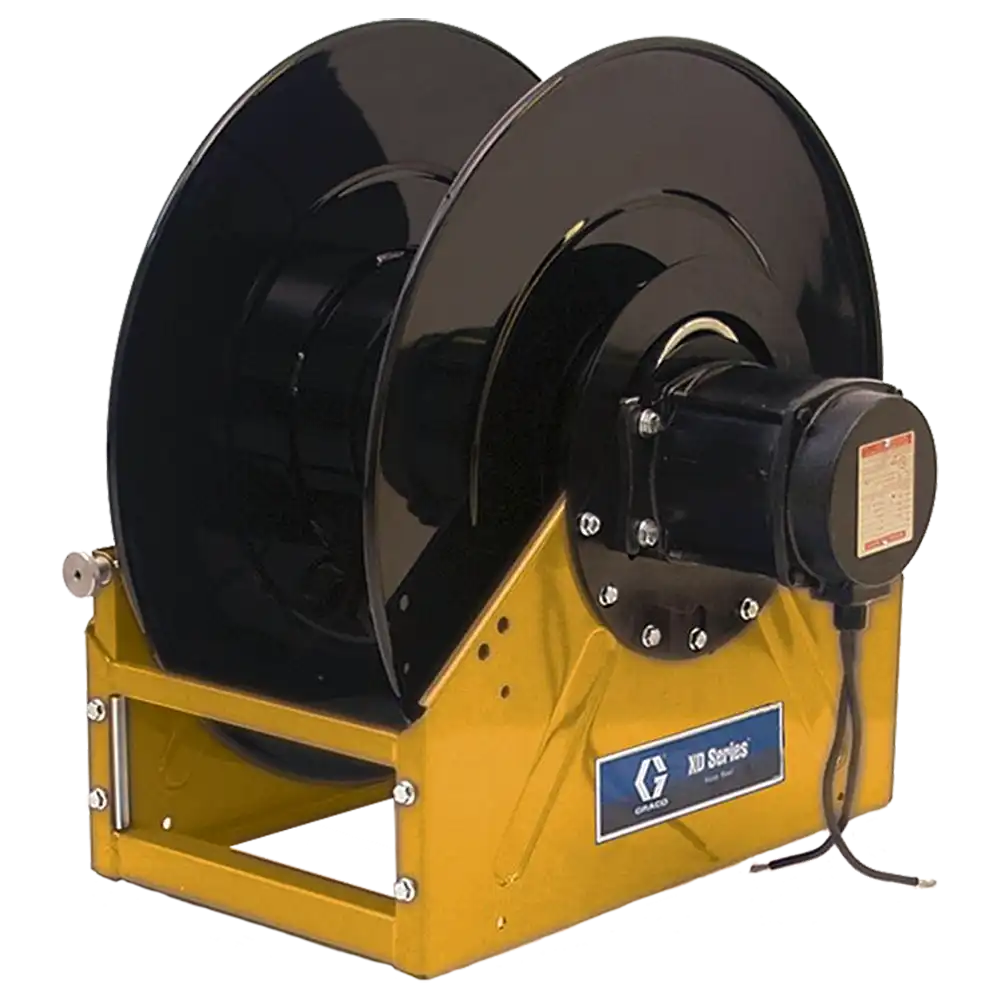

The Graco XD70 Diesel Fuel/WOE Bare Reel, Part Number 24T117, is designed for durability and efficiency in high-demand fueling and waste oil evacuation applications. With a 1.5-inch inlet and outlet and a 50-foot hose capacity, this motorless reel is ideal for handling large volumes of fluid while maintaining safe, consistent operation.
Built with a heavy-duty welded spool, the XD70 protects the drive unit and withstands the strain of heavy hoses. Its one-piece welded frame provides superior strength and resilience compared to bolted frames, which can loosen under stress. Finished with individually powder-coated components, this reel offers excellent corrosion resistance, making it suitable for both indoor and outdoor use.
The XD70’s simple, rugged design makes it a favorite among technicians working in fleet maintenance, mining, construction, agriculture, and service truck environments. With a maximum working pressure of 600 psi and wide operating temperature range, this reel delivers dependable performance in even the harshest conditions. When your operation demands safe, heavy-duty hose management, the Graco XD70 is built to handle the job.
Features & Specifications
- Motorless bare reel design for simple reliability
- Heavy-duty welded spool protects hose and drive components
- One-piece welded frame ensures maximum durability
- Powder-coated finish for corrosion resistance
- 1.5 in. inlet and outlet with NPT threads
- Hose capacity: 1.5 in. x 50 ft. (38 mm x 15 m)
- Maximum working pressure: 600 psi (41 bar)
- Temperature range: -40°F to 180°F (-40°C to 82°C)
- Overall dimensions: 38.4 in. H x 27.6 in. L x 36 in. W
- Dry weight: 87 lbs
- Recommended fluid types: Diesel Fuel, Waste Oil Evacuation (WOE)
- Manufacturer’s Part Number: 24T117
