Description

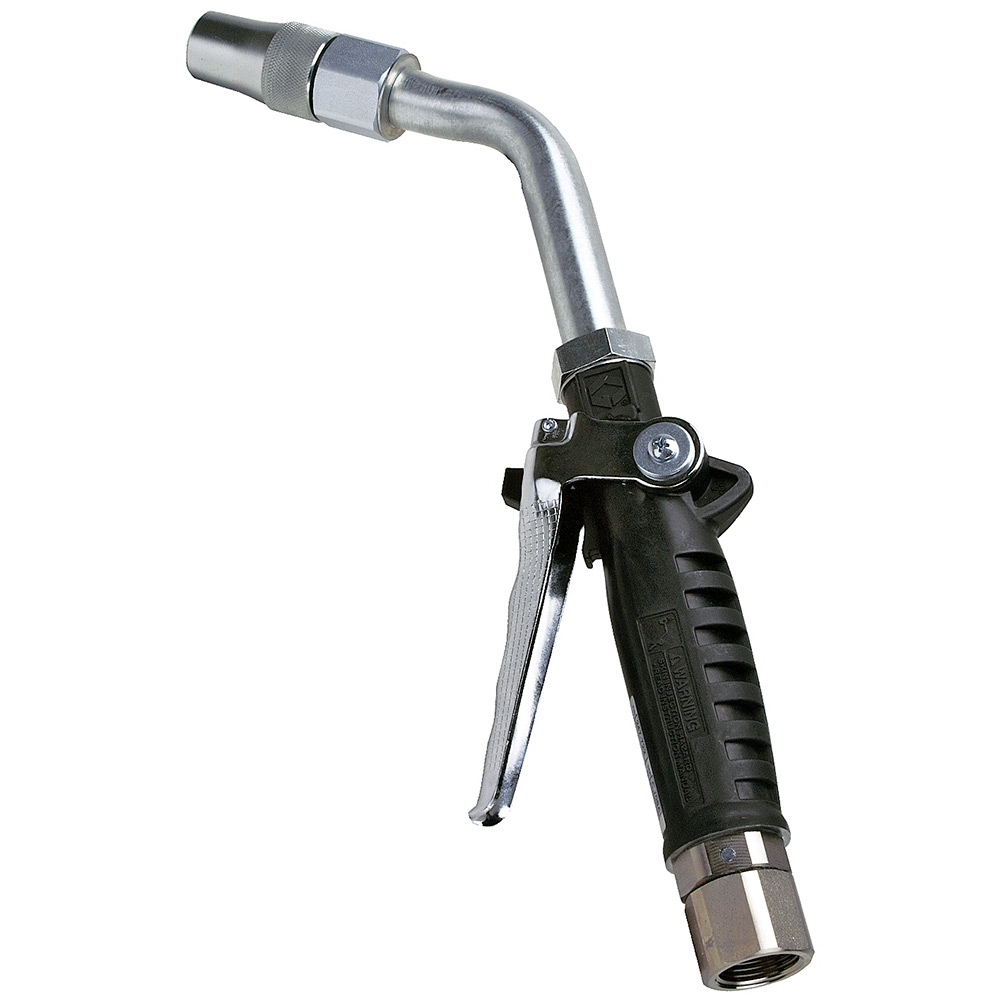

The Graco XDV20 Control Valve – 3/4 in. Inlet is engineered for heavy-duty oil dispense in fast-paced service environments. Designed for standard and high-volume jobs, it provides high-flow performance with up to 20 GPM (75.7 LPM). Whether working in a dealership, lube center, or mining site, technicians can rely on this valve’s sturdy cast body and rigid extension.
It features a 3/4-inch NPT swivel inlet, offering increased flow capacity compared to the Graco part 247718, which uses a 1/2-inch inlet. This makes the Graco 247722 ideal for systems where higher throughput is required. Both models include a lock-on/lock-off trigger for hands-free operation, but 247722 allows greater oil volume transfer through its larger inlet. The Graco XDV20 control valve remains a trusted solution for durable, manual, non-metered oil dispensing whether you are looking for the 1/2 inch inlet or the 3/4 inch inlet.
Features & Specifications
- Non-metered, high-flow valve with up to 20 GPM (75.7 LPM) capacity
- Rigid extension and nozzle included for consistent oil dispensing
- 3/4 in. NPT female swivel inlet for high-volume throughput
- Lock-on/lock-off trigger provides convenient hands-free operation
- Heavy-duty cast body for long-term performance in rugged use
- Compatible with automotive, fleet, industrial, and mining applications
- Operating temperature range: -40°F to 180°F (-40°C to 82°C)
- Maximum working pressure: 1500 PSI (103.4 bar)
- Shipping weight: 3.5 lbs (1.59 kg)
- UPC Code: 633955316591
- Part Number: 247722
