Description

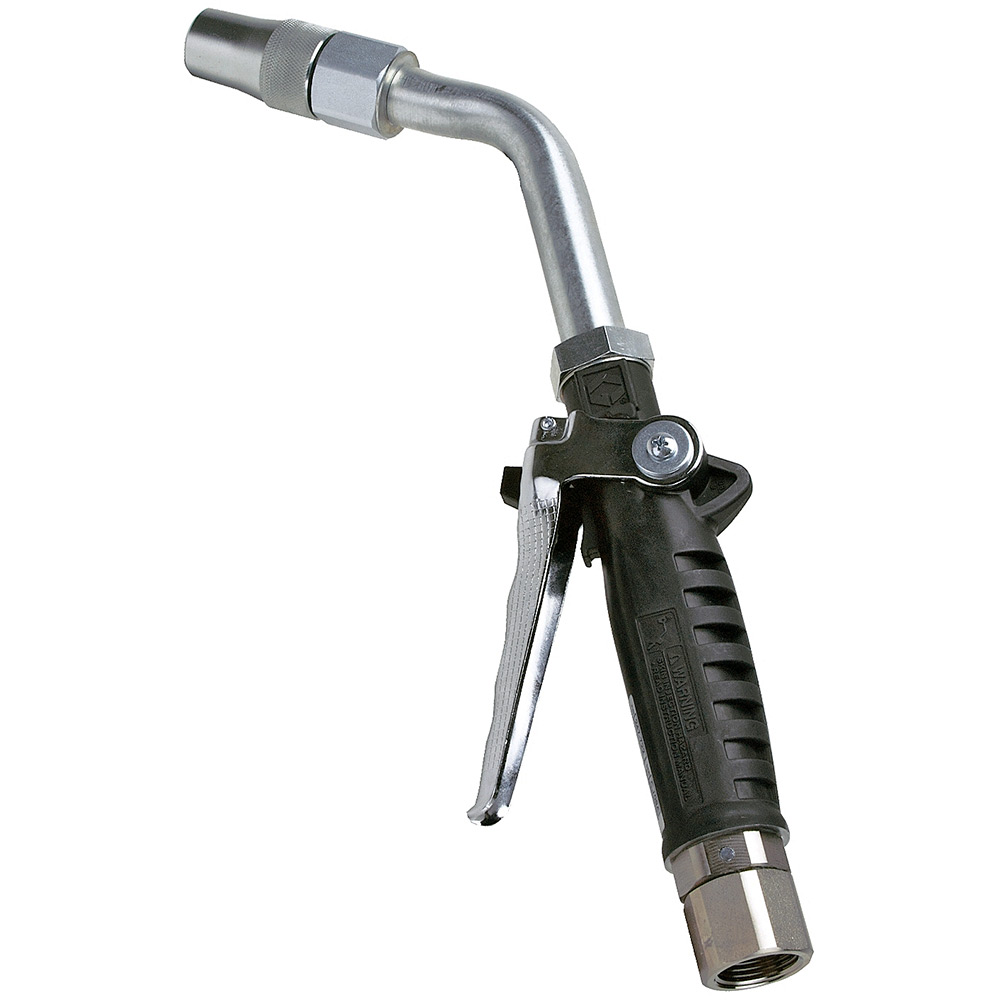

The Graco XDV20 Control Valve is engineered for high-flow oil dispensing in demanding service environments. Designed for standard and heavy-duty use, this non-metered valve is ideal for automotive dealerships, fleet garages, lube trucks, and mining operations. Its rugged cast body and rigid extension ensure lasting performance and a consistent dispensing experience. This model includes a lock-on/lock-off trigger for hands-free operation, improving technician comfort and speed. With a 1/2-inch NPT swivel inlet and a 7/8-inch outlet, it handles up to 20 GPM (75.7 LPM). Built for long plumbing runs and high-volume fluid usage, the Graco XDV20 control valve meets the needs of large shops and fast-paced facilities
Features & Specifications
- Non-metered, high-flow design delivers up to 20 GPM (75.7 LPM)
- Rigid extension and nozzle included for controlled oil dispense
- Lock-on/lock-off trigger for hands-free operation
- 1/2 in. NPT female swivel inlet for flexible connections
- Durable cast body built for rugged indoor and outdoor use
- Compatible with standard and heavy-duty oil dispensing setups
- Operating temperature range: -40°F to 180°F (-40°C to 82°C)
- Maximum working pressure: 1500 PSI (103.4 bar)
- Shipping weight: 3.5 lbs (1.59 kg)
- UPC Code: 633955316560
- Country of Origin: China
- Part Number: 247718
