Description
JET Tools 144183 MT050-4 1/2T Electric Trolley 460V

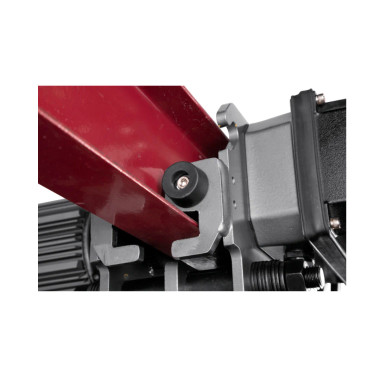

The JET MT050-4 is a 460V three-phase electric trolley rated for a 1/2-ton load capacity, used to move suspended loads horizontally along an overhead beam. Its two-speed operation allows high-speed travel and a slower speed for precise placement, with an IP-55 trolley and IP-65 pendant rating for indoor and outdoor service.
Features
- Heavy-Duty motor puts out up to 0.8HP making it the strongest in it’s class
- TAA Approved
- Two speeds reduces bump firing to while still allowing high speed movement of materials
- Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
- Expanded flange capacity kits are available.
Specifications
| Stock Number | JT-144183 |
| Capacity (Lbs.) | 1100 |
| Load Capacity (Tons) | 1/2 |
| Maximum Beam Flange Width (In.) | 5 |
| Minimum Beam Curve Radius (In.) | 51.2 |
| Minimum Beam Flange Width (In.) | 3 |
| Model Number | MT050-4 |
| Motor (HP) | 0.04 / 0.16 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 460 |
| Wheel Diameter (In.) | 7/8 |
| Travel Speed – Low (FPM) | 20.0000 |
| Travel Speed – High (FPM) | 79.0000 |
