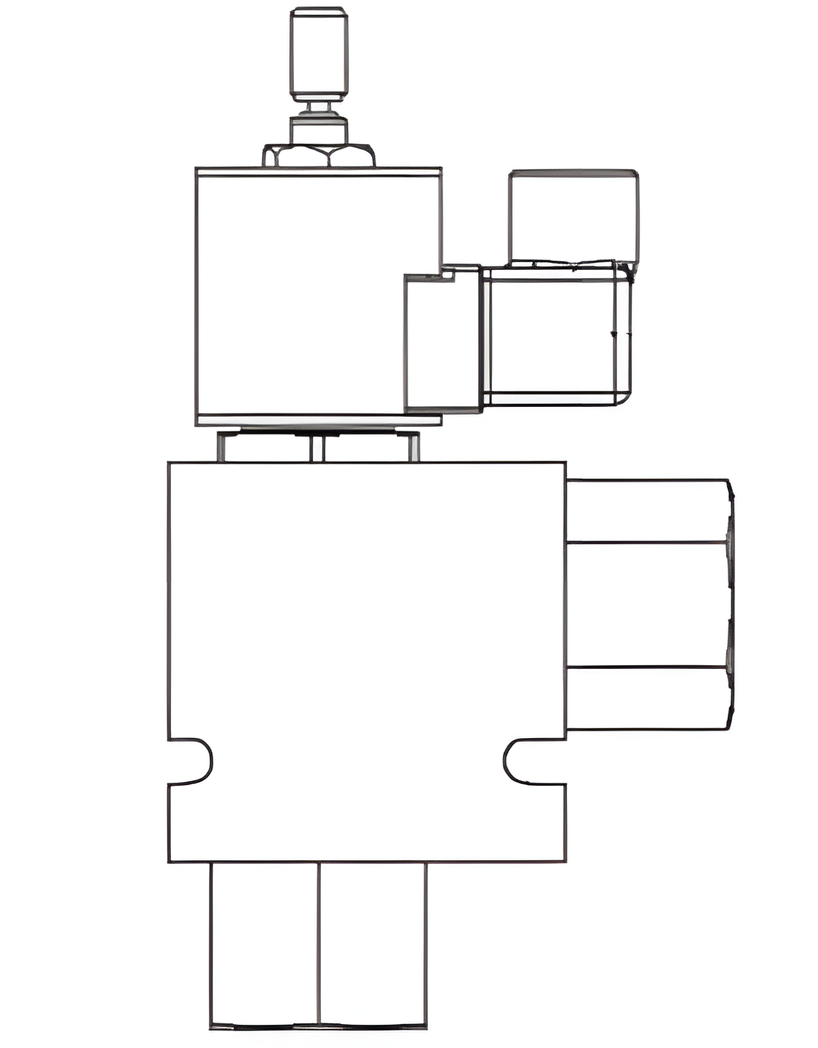

Lincoln – 277691 – 12V DC High Flow Solenoid
The Lincoln Solenoid 277691 is a solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuits.
- Power Requirement: 12 VDC @ 1.7 Amps
- Normally Closed
- Flow Rate: 40 GPM
- Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt
- Operating Pressure: 3500 PSI
- Operating Temperature: -40 to 212°F (-40 to 100°C)
- Connections: 1″ NPT Female
- Continuous Duty rated coil
- 1/2″ Conduit Din Connector included
