Description
Manuals and Information:
M/MA-series Installation and Operation Manuals
Meter Overview
M/MA Meter Spec Sheet
M25 Spec Sheet

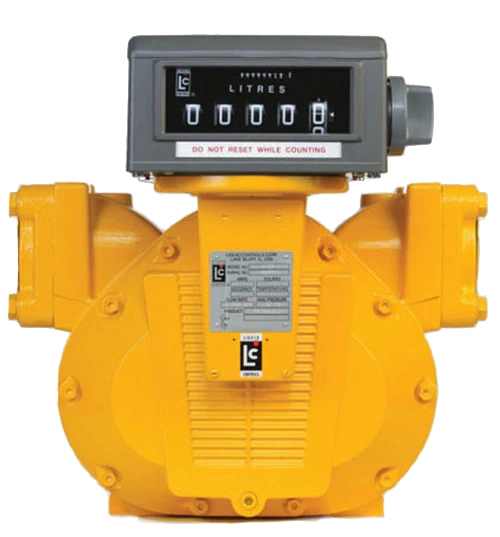

Liquid Controls -M25C2-LRG1-Meter with Register, Strainer, Air Eliminator
Left to Right Flow, 150 Pressure, Litres, MECH, Temp Comp NIST Approval. LC meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The LC meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts.
Features
- 300 GPM / 1136 LPM
- 150/275psi / 10.5 BAR.
- 3″ NPT Standard Flange Size
- Low pressure drop-will operate on gravity flow or pump pressure.
- Sustained accuracy-no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer re-calibrations, and longer service life. Meters conform to NIST and International Weights and Measures accuracy requirements.
- Wide temperature range-products can be metered accurately from -40° F (-40° C) to 160° F (71°C).
- Wide viscosity range-LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise).
- Maximum adaptability-right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
NOTE: Please verify all information for the product before making a purchase. Product images are only a representation of the product and may not fully depict the final product received. For any questions on Liquid Controls options or accessories please give us a call at 1-800-433-8831.
| Part Number | Flow | Pressure | Unit of Measure | Strainer Type | Mesh | Air Elim. | Temp Comp | W&M Approval |
|---|---|---|---|---|---|---|---|---|
| M25C2-LRG1 | L-R | 150 | WH GAL | STD | 40 | Mech | No | NIST |
