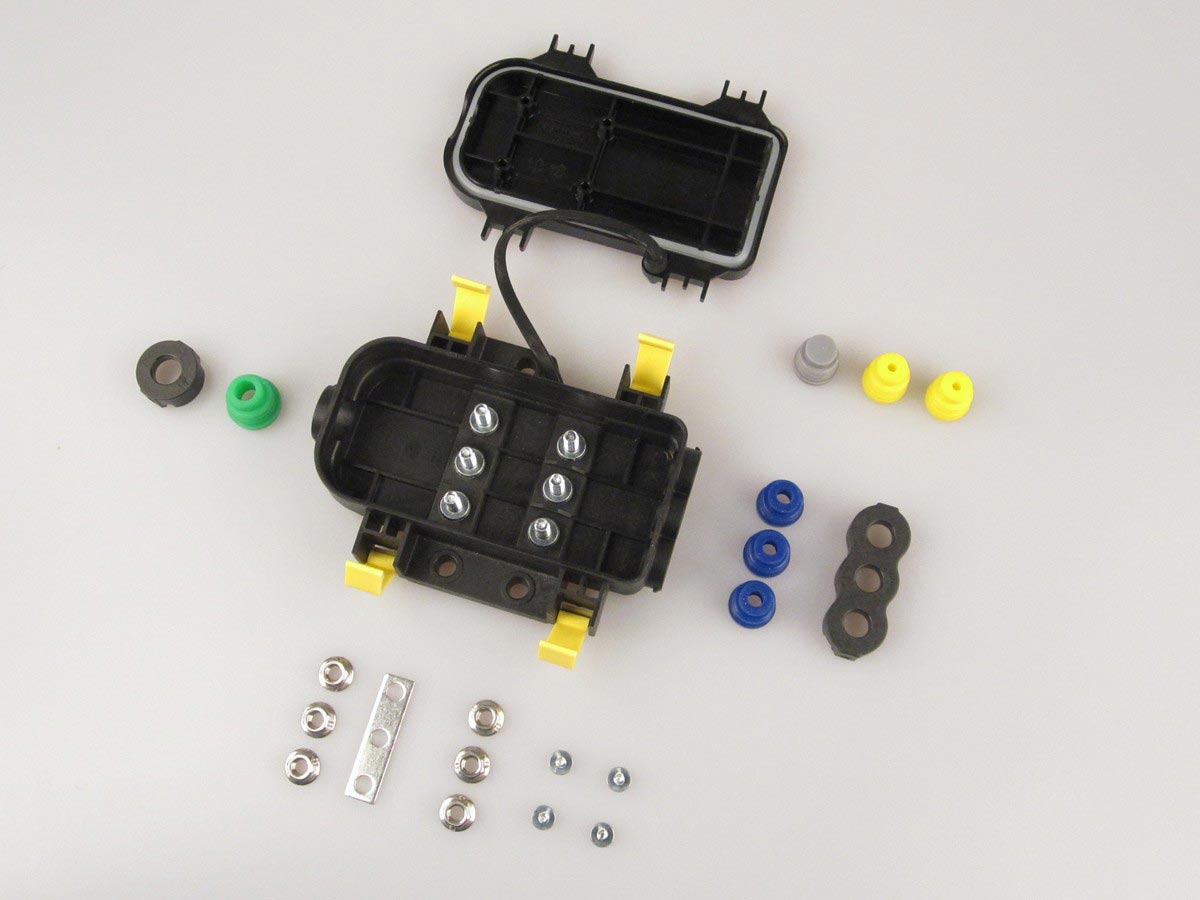

Description
Specifications
Voltage: 6-58VDC
Max Total Current: 200A
Input Cable Size: 6 or 4 AWG (4 AWG shown)
Output Cable Size: 6, 8, or 10 AWG (8 AWG shown)
Fuses: Littlefuse MIDI (available below)
Fuse Torque: 5 Nm
Mounting Torque: 6-8 Nm
Operating Temp: -40 to +85 degC
Ingress Protection: IP67, IP69K
Flammability Rating: UL94-V0
Dimensions: 131mm x 68mm x 38mm
