Description

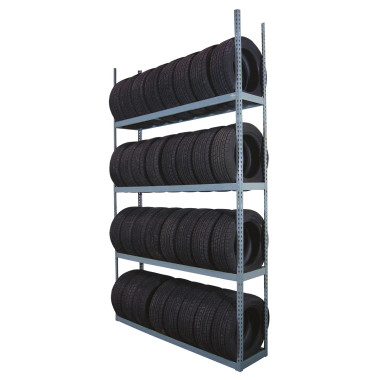

Martin Industries MTSR-4 4 Tier Tire Storage Rack For Passenger & Light Truck Tires
The compact and sturdy 4-tier Tire Shelving Rack with tires positioned on tread increases your storage efficiency while keeping your warehouse tidy. Easily locate and pick the right tires or tire/wheel assemblies without having to handle other tires such as you would need to do with barrel stacked tires. The 4-tier tire storage rack is easy to assemble and fits perfectly in sea containers when in need of extra storage space.
Features
- Efficient tire storage for your passenger car, SUV & light truck tires.
- Maximize space by storing 7 to 9 tires per tier for a maximum of 500 lb.
- Shelves are adjustable in 1″ increments to accommodate different tire sizes.
- 45º angle beams to properly position the tire in the rack and avoid long-term marks.
- All in one box – All required brackets and more are included with every shelving.
Included
- Upright beam (4x).
- Front beam (8x).
- Side beam (8x).
- Center bracket (4x).
- Wall bracket—Left & right (2x).
- Back-to-back bracket (2x)—to connect two racks back-to-back.
- Square bracket (4x)—to connect two racks side to side.
- Hardware kit.
- Assembly instructions.
Specifications
| Features | Fixed, Adjustable |
| Tire type | Passenger car & SUV tires |
| Tire storage method | On the Tread |
| Tire capacity | 36 |
| Overall tire diameter – max. (inches) | 28 |
| Load capacity (lb) | 2000 |
| Net weight (lb) | 88 |
| Gross weight (lb) | 95 |
| Product dimensions – L x W x H (inches) | 87 3/4 x 16 3/8 x 117 1/4 |
| Package dimensions – L x W x H (inches) | 90 1/2 x 5 1/2 x 5 1/2 |
| Materials | Steel |
| Finish | Powder coated paint UV resistant – Never loses is luster |
| Color | Grey |
