Description

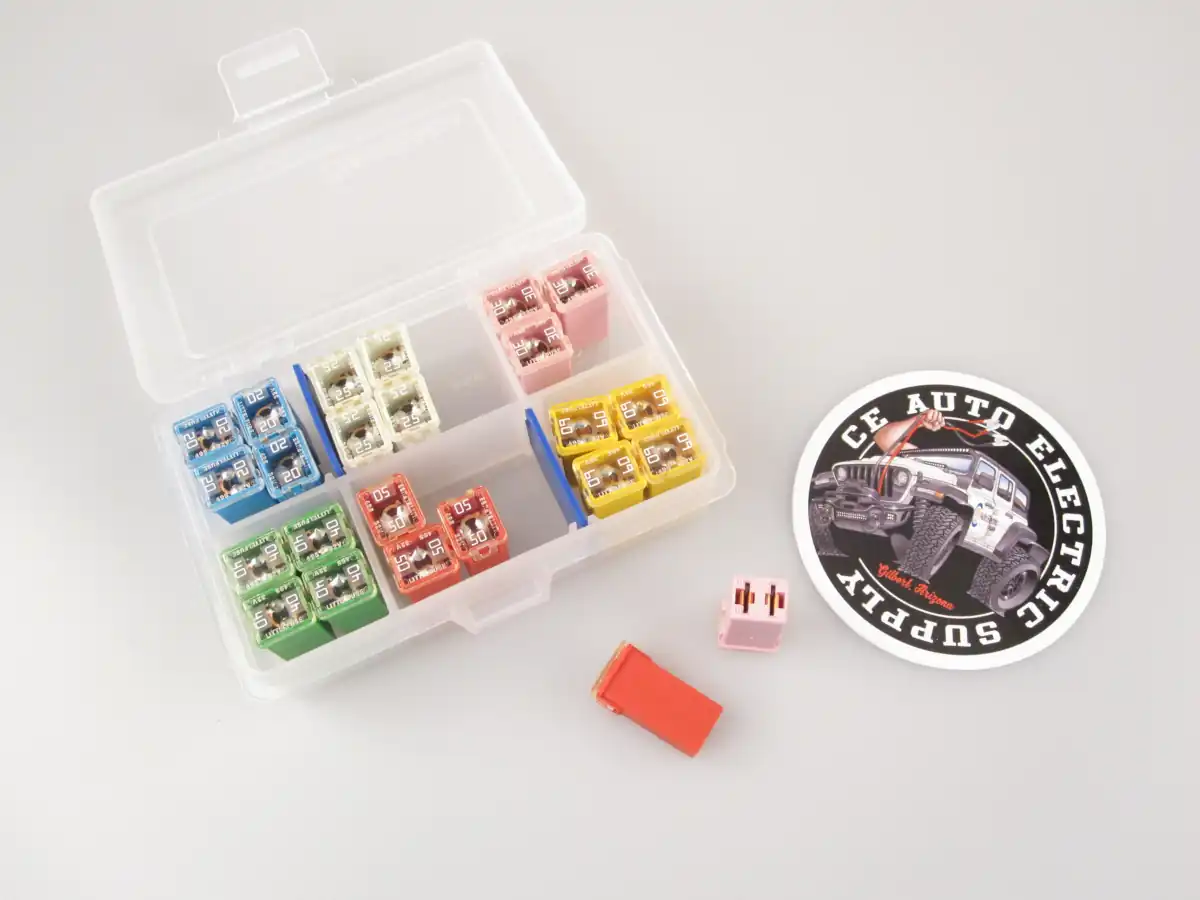

The Master JCASE™ Fuse Kit contains the following (24) pieces:
(4) 20 Amp JCASE™ Fuses, Tall
(4) 25 Amp JCASE™ Fuses, Tall
(4) 30 Amp JCASE™ Fuses, Tall
(4) 40 Amp JCASE™ Fuses, Tall
(4) 50 Amp JCASE™ Fuses, Tall
(4) 60 Amp JCASE™ Fuses, Tall
The JCASE™ is a cartridge style fuse with female terminal design, providing both increased time delay and low voltage drop to protect high current circuits and handle inrush currents. The JCASE™ was designed and patented by Littelfuse.
JCASE™ fuses have similar failure characteristics to fusible links, which is why you’ll find them under the hood of modern vehicles. In addition, they’re far easier to replace.
Specifications
Type: JCASE
Voltage Rating: 32VDC
Interrupt Rating: 1,000A @ 32VDC
Operating Temp: -40 to +125 degC
Time vs Current Characteristics (min / max)
- 110% of rating – 360,000 sec minimum
- 135% of rating – 60 sec / 1800 sec
- 200% of rating – 4 sec / 60 sec
- 350% of rating – .2 sec / 7 sec
- 600% of rating – .04 sec / 1 sec
