MAXX KIT Hydraulic Actuator 3,500 lbs. Integral Disc Brake Kit for a Single Axle with Gold Zinc Calipers and Timken Bearings – DMK35IG1ACT-TK

Description

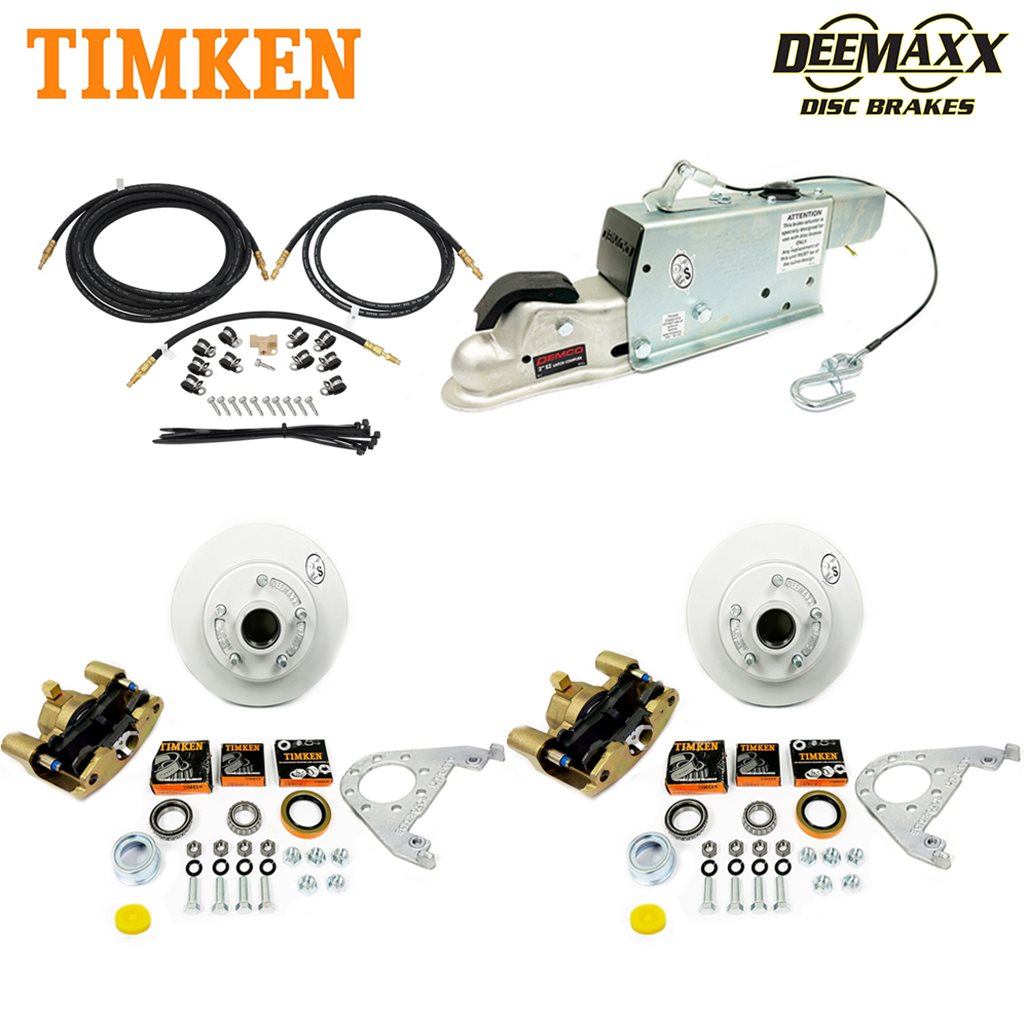

The Maxx kit will include one 8705101 Demco Disc Brake Actuator with Blocking Solenoid Kit, one DeeMaxx DOT-SA18K 18 Foot Single Axle Brake Flex Hose Kit, and two 3,500 lbs. DeeMaxx gold zinc finish calipers with DeeMaxx integral disc brakes and Timken® bearings.

The 8705101 7,000 lb. G.V.W.R. Disc Brake Actuator with Blocking Solenoid Kit.  1/2″ x 4 1/2″ grade 5 bolts are required in mounting of straight actuators.  600 lb. maximum tongue load.  Limited to coupler rating.  Plated actuator may be used in a marine application.  Plated, top mount, lever lock coupler.  2″ ball 3″ channel.

3,500 lbs. DeeMaxx Gold Finish disc brake:

• 5 lug 1/2″ studs. 10″ Integral vented rotor.
• Unique rotor cross section design actively draws cooling air from the rotor interior!
• Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
• Exclusive laser writing on caliper means instructions are always there!
• Every caliper is tested to 2000 psi
• Robust ductile iron casting eliminates flexing resulting in more brake torque.
• Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
• Compatible with every surge and electric over hydraulic actuators!
• Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip
• Unique bracket design provides twice as many mounting options for caliper position
• Produced in ISO Quality certified factories!
• Passed the SAE J2681 Brake test!
