Description

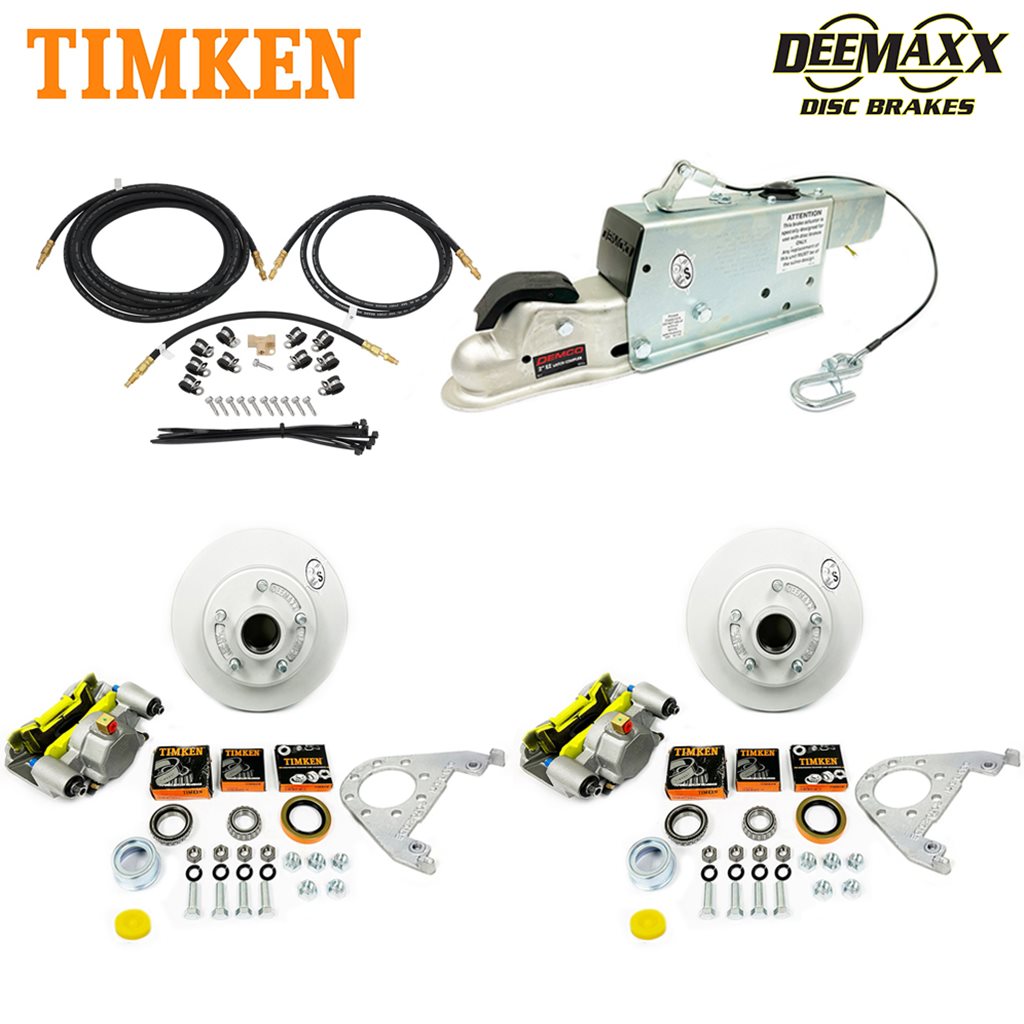

The DeeMaxx Components MAXX KIT Hydraulic Actuator 3,500 lbs. Integral Disc Brake Kit for a Single Axle with MAXX Dacromet Calipers and Timken® Bearings (Part DMK35IM1ACT-TK) is a complete, high-performance hydraulic disc brake system for single axle trailers. This premium kit includes everything needed for strong, reliable braking with excellent corrosion resistance.
Key Features
- Part Number: DMK35IM1ACT-TK
- Brand: DeeMaxx Components
- Axle Capacity: 3,500 lbs. Single Axle
- System: Hydraulic Disc Brake Kit with Integral Actuator
- Calipers: MAXX Dacromet Finish Calipers
- Bearings: Premium Timken® Bearings
Kit Contents
- 1 x 8705101 Demco Disc Brake Actuator with Blocking Solenoid Kit (7,000 lb. GVWR, 600 lb. max tongue load, 2″ ball, 3″ channel)
- 1 x DeeMaxx DOT-SA18K 18 Foot Single Axle Brake Flex Hose Kit
- 2 x 3,500 lbs. DeeMaxx MAXX Dacromet Finish Calipers with Integral Disc Brakes and Timken® Bearings
DeeMaxx MAXX Disc Brake Features
- 5 lug 1/2″ studs with 10″ Integral vented rotor
- Unique rotor cross section design actively draws cooling air from the rotor interior
- Exclusive 120º bleeder design for better bleeding and balanced system
- Every caliper tested to 2000 psi
- Robust ductile iron casting for increased brake torque
- Ceramic brake pads – slotted, chamfered, with stainless steel clip
- Unique bracket design provides multiple mounting options
- Passed the SAE J2681 Brake test
- Produced in ISO Quality certified factories
This complete MAXX KIT delivers superior braking performance, heat dissipation, and corrosion resistance. Ideal for boat trailers, utility trailers, cargo trailers, and other single axle applications where reliable hydraulic disc braking is essential.
Questions about this DeeMaxx MAXX KIT or compatibility with your trailer? Call our trailer experts at 1-800-866-3336.
Browse more Hydraulic Brake Kits.
| Part No | Quantity | Description |
| 8705101 | 1 | Demco Disc Brake Actuator with Blocking Solenoid Kit |
| DOT-SA18K | 1 | DeeMaxx 18 Foot Single Axle Brake Flex Hose Kit |
| 716LW | 8 | 7/16″ Lock Washer |
| 716NFN | 8 | 7/16″ HEX Fine Nut |
| 716X114NFBLN | 8 | 7/16″ Mounting Bolt |
| DC-RPY | 2 | DeeMaxx Yellow Silicone Rubber Lube Plug |
| FS622 | 2 | 1.98″ Lube Dust Cap |
| DM35KROTOR | 2 | DeeMaxx 10.2″ Rotor & Hub 5 Lug Integral with Maxx Coating |
| SWCALP3-6KMAXX | 2 | DeeMaxx 3,500 – 6,000 lbs. MAXX Dacromet Plated Finish Disc Brake Caliper w/Organic Pads |
| DBB-3.5KI-MAXX | 2 | DeeMaxx Disc Brake Bracket for 3.5K Axle Integral Rotor Maxx Coating |
| L68149 | 2 | Timken® Inner Bearing |
| L44649 | 2 | Timken® Outer Bearing |
| GS-1719DL | 2 | 1.719″ ID Double Lip Grease Seal |
| X1023R | 10 | 1/2″-20 Lug Nut 60 Degree 13/16″ WAF |
