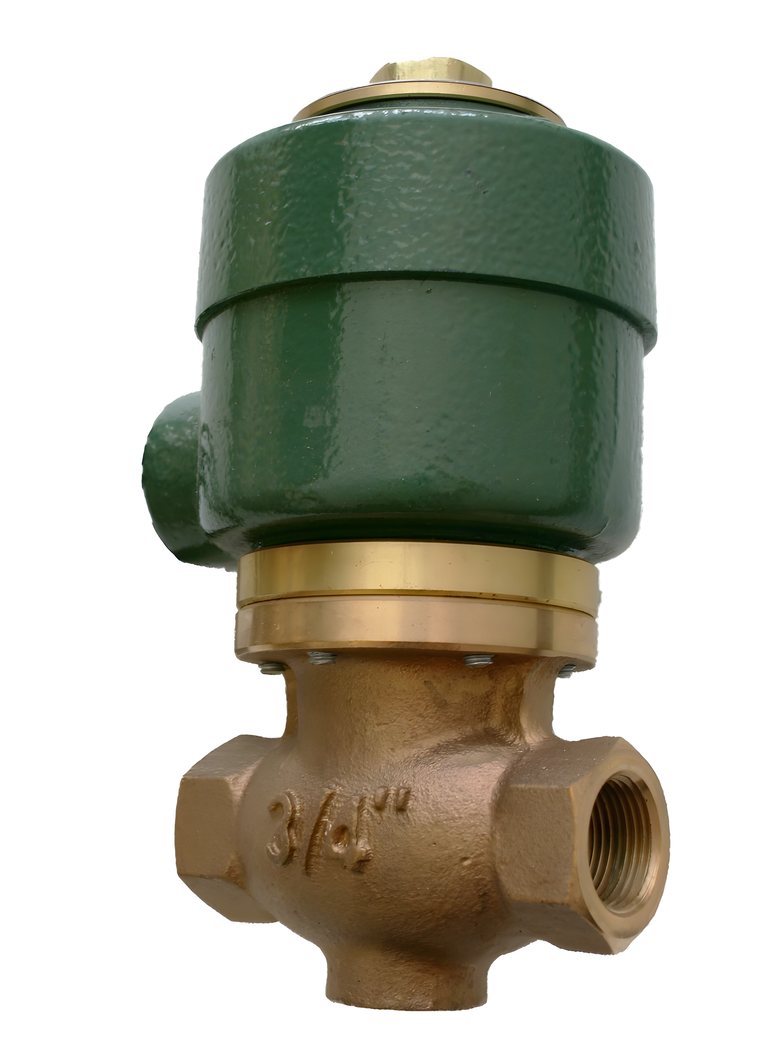

Morrison Bros. Co. 710 Series Solenoid Valve – Normally Closed
Manuals and Information:
710 Series Spec Sheet
Normally closed solenoid valves are used to help prevent the accidental siphoning of product from a tank in the event of a fracture in the pipe or other cause for leak downstream and below the liquid level.Generally installed on the dispensing side of a fuel system pipeline. The valve opens upon the receipt of an electronic signal such as when a dispenser or pump is switched to the on position.
Features:
- Normally closed, hung piston design
- Install in a horizontal pipeline in the upright vertical position
- Minimum operating temperature is -40°F
- Zero pressure differential
- Integral thermal relief allows the valve to relieve expansion pressure in the opposite direction of flow
- Continuous duty Class H standard coil operates at 120 volts
- Enclosure is watertight and rated for hazardous locations NEMA 3, 4X, 7 and 9; groups C and D
- Several optional coil voltages available
- 710MO has manual override feature. Available in sizes ranging fromto 2″ for operation during a power outage
- Recommended for use with liquids having a maximum viscosity of 60 centistokes
- A strainer with a 100 mesh screen is recommended at the valve inlet
Construction:
- Body: Cast bronze
- Seals: FKM, PTFE
- Solenoid housed in an integral, watertight, explosion-proof shell
Certifications:
- CSA listed (File No. 108921, Model Z1314); Class I, Groups C and D; Class II, Groups E, F and G; Class III; T3C
NOTE: Product can only be pumped in one direction, the direction of the flow arrow. Not designed for use as an overfill prevention or process control valve.
