Description

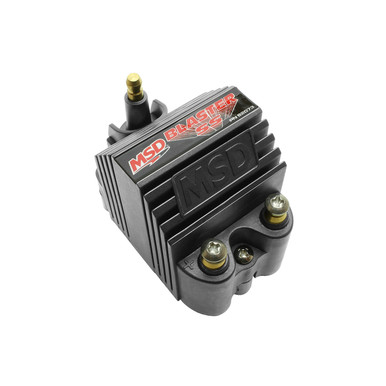

A weak spark kills performance. The MSD Blaster SS Ignition Coil delivers 40,000 volts and 300mA of current through an efficient E-core design, ensuring a hot, reliable spark that translates to faster combustion, quicker throttle response, and stronger overall engine output—especially critical when running high-compression builds or forced induction setups. Built with Ciba polyurethane encapsulation and brass primary terminals, it’s engineered to withstand the heat and vibration of sustained high-RPM operation without degradation.
If you’re running an MSD 6 Series ignition system and want to maximize spark intensity and consistency across the RPM band, this is a direct bolt-on upgrade that delivers measurable gains.
- Coil Type: Blaster
- Maximum Voltage: 40,000V
- Peak Current: 300mA
- Inductance: 6.9mH
- Primary Resistance: 0.355Ω
- Secondary Resistance: 4.4kΩ
- Spark Duration: 220µs
- Turns Ratio: 70:1
- E-core Design: High-efficiency windings
- Housing: Rigid with brass terminals
- Encapsulation: Ciba polyurethane
- Boot & Terminal: 90° included
- Color: Black
- Dimensions: 3.5″L × 2.3″W × 2.65″H
- Weight: 1.08 lbs
- MPN: 82073
- CARB E.O.: D-40-37
