Description

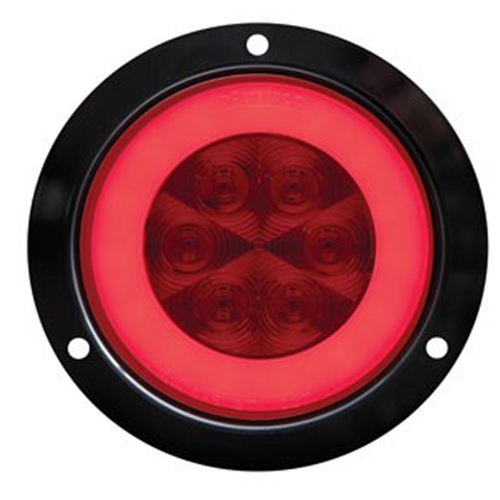

Part Number: STL101RFBK, Sold Individually. Flange mount stop/turn/taillight. Accepts industry standard 3-prong plug for easy retrofit of incandescent lights. Meets DOT FMVSS 108 requirements. Features smoothly illuminated outer band that surrounds a central LED array that remains unlit during standard taillight operation. The dual-function outer ring brightens and the central LED array light only during stop and turn functions. Sonically sealed, waterproof lens and housing in a single unit. All-weather molded plastic housing and durable lens protect against corrosion. Includes plug (A45PB) for complete installation.
Product Specifications
- Color: Red
- Diodes: 21
- Mount: Flange – Recess
- Connection: PL-3
- FMVSS: S2 T2 I6
- Housing Material: Polycarbonate
- Lens Material: Polycarbonate
- Voltage: 12V
- Amp Draw: 0.375
- Warranty: Lifetime LED Warranty
- Weight: 0.380 lbs.
- Size/Shape: 4″ Round
- Dimensions (W x H x D): 5.480 x 5.480 x 1.530
