Description
Part Number: MCL-86AB, Sold Individually.

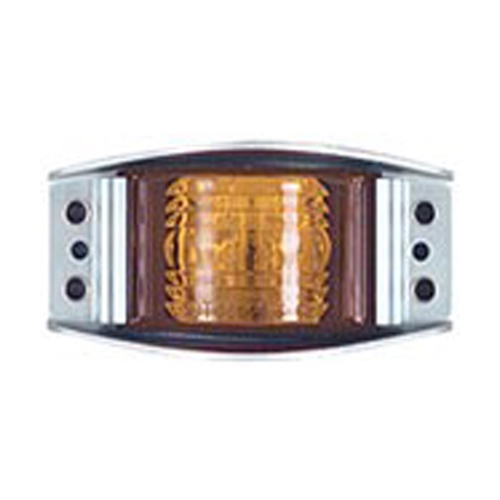

Amber Armored Die Cast LED Marker/Clearance Light. LED clearance or side marker light with rugged, armored die cast housing. PC-Rated light that functions as both a clearance and a side marker light when properly mounted on a 45 degree angle. Features snap-on, replaceable lens and rugged, all-environment steel housing. Includes gasket for weather-tight seal Two-wire design contains both lead wire and ground wire for mounting to all surfaces. 6 diodes. (black=power, white=ground)
Product Specifications
- Color: Yellow
- Diodes: 6
- Mount: Surface
- Connection: Hard Wired
- FMVSS: P2 PC
- Housing Material: Steel
- Lens Material: Acrylic
- Voltage: 12V
- Amp Draw: 0.20
- Warranty: Lifetime LED Warranty
- Weight: 0.463 lbs.
- Size/Shape: Rectangular
- Dimensions (W x H x D): 4.500 x 2.250 x 1.500
