Description

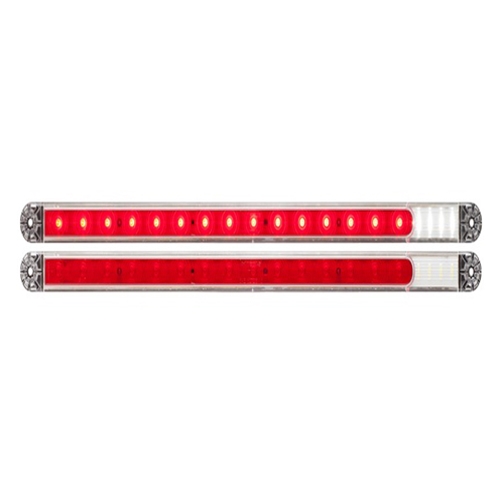

Part Number: STL264RB, Sold Individually. FUSION ™ 19-LED Thin line Combination Stop/Turn/Tail/Back-Up Light. Sonically sealed, waterproof. DOT compliant back-up light built into thin line stop/turn/taillight. Meets SAE S2 T2 I6 (2)R for over 80″ wide vehicles. Surface mount – No panel cut-out required. hard wired (black=tail, red=stop/turn, yellow=back-up, white=ground), 7.5-in. leads
Product Specifications
- Color: Red
- Diodes: 21
- Mount: Surface
- Connection: Hard Wired
- FMVSS: S2 T2 I6 (2)R
- Housing Material: Polycarbonate
- Lens Material: Polycarbonate
- Voltage: 12V
- Amp Draw: .265A Stop/Turn, .24A Tail, 0.3A Back-Up
- Warranty: Lifetime LED Warranty
- Weight: 0.441 lbs.
- Size/Shape: Light Bar
- Dimensions (W x H x D): 20.500 x 1.000 x 0.750
