Description

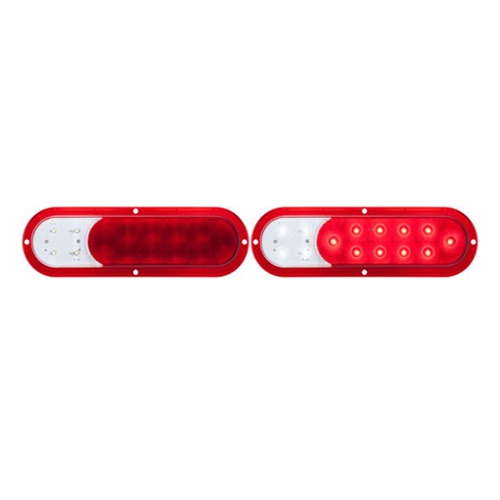

Part Number: STL68RB, Sold Individually. FUSION™ Surface Mount LED Combination Stop/Turn/Tail/Back-Up Light. Sonically sealed, waterproof. Low profile design–only 1/2” thick. Surface mount on 9-11/16” centers. Hard wired with separate ground wire.hard wired (red=stop/turn, black=tail, brown=back-up, white=ground), 7-in. leads.
Product Specifications
- Color: Red
- Diodes: 14
- Mount: Flange – Surface
- Connection: Hard Wired
- FMVSS: S2 T2 I6 (2)R
- Housing Material: Polycarbonate
- Lens Material: Polycarbonate
- Voltage: 12V
- Amp Draw: .35A Stop/Turn, .05A Tail, .3A Back-up
- Warranty: Lifetime LED Warranty
- Weight: 0.275 lbs.
- Size/Shape: Oblong
- Dimensions (W x H x D): 10.125 x 3.063 x 0.500
