Description

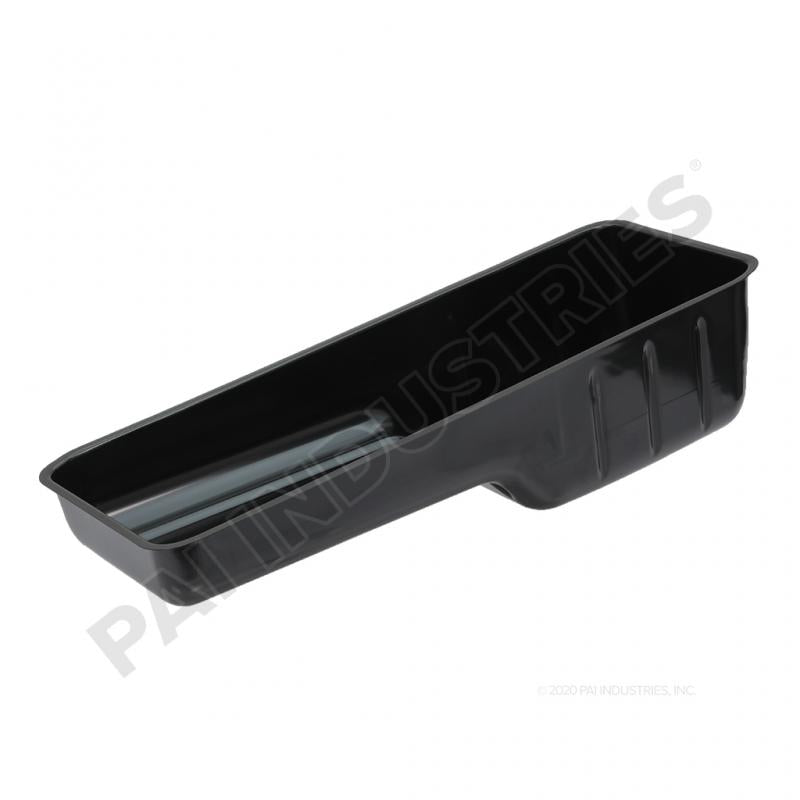

Premium aftermarket replacement oil pan kit from PAI Industries. The 141344E is a steel pan finished in black with 15 quart capacity, fitting either front or rear sump configurations on Cummins ISB and QSB 4.5L, 5.9L and 6.7L engines. It ships with the M22 x 1.5 drain plug installed and replaces Cummins 2831341.
Signs You Need a New Oil Pan
- Oil dripping or pooling from the lowest point of the engine, heaviest right after shutdown, with a wet film tracking along the pan rail or drain boss
- Visible impact damage — a dent, crease or gouge from road debris, a curb strike or bottoming out
- Stripped or leaking drain plug threads that a new sealing washer will not stop
- Rust-through, pinholes or weeping at the lowest seam or drain boss, common in road-salt regions
- Pan flange no longer flat, with elongated bolt holes, so a fresh gasket starts leaking again within days
Specifications
| Manufacturer | PAI Industries |
|---|---|
| Part Number | 141344E |
| Part Type | Oil Pan Kit |
| Engine Compatibility | Cummins ISB and QSB, 4.5L, 5.9L and 6.7L |
| Material | Steel, black finish |
| Capacity | 15 quart |
| Sump Position | Fits front or rear sump configurations |
| Length | 31.12 in |
| Width | 11.06 in |
| Depth | 7.50 in |
| Ports | 1; not baffled, no pickup tube, no crank wiper |
| Drain Plug | Included, M22 x 1.5 |
| Product Line | PAI Excel, 1 year warranty |
Cross References
This part replaces or is equivalent to the following part numbers:
- Cummins: 2831341
- Cummins: 2831343
Applications
This oil pan kit fits Cummins engines found in:
- Cummins ISB 5.9L and 6.7L on-highway applications
- Cummins QSB 4.5L, 5.9L and 6.7L industrial and off-highway applications
Verify fitment with your engine serial number and sump configuration before ordering. The E suffix marks the PAI Excel value line with a 1 year warranty — the standard PAI 141344 is the same pan with a 2 year warranty. Gasket is sold separately; the matching gasket is PAI 131794.
