Description

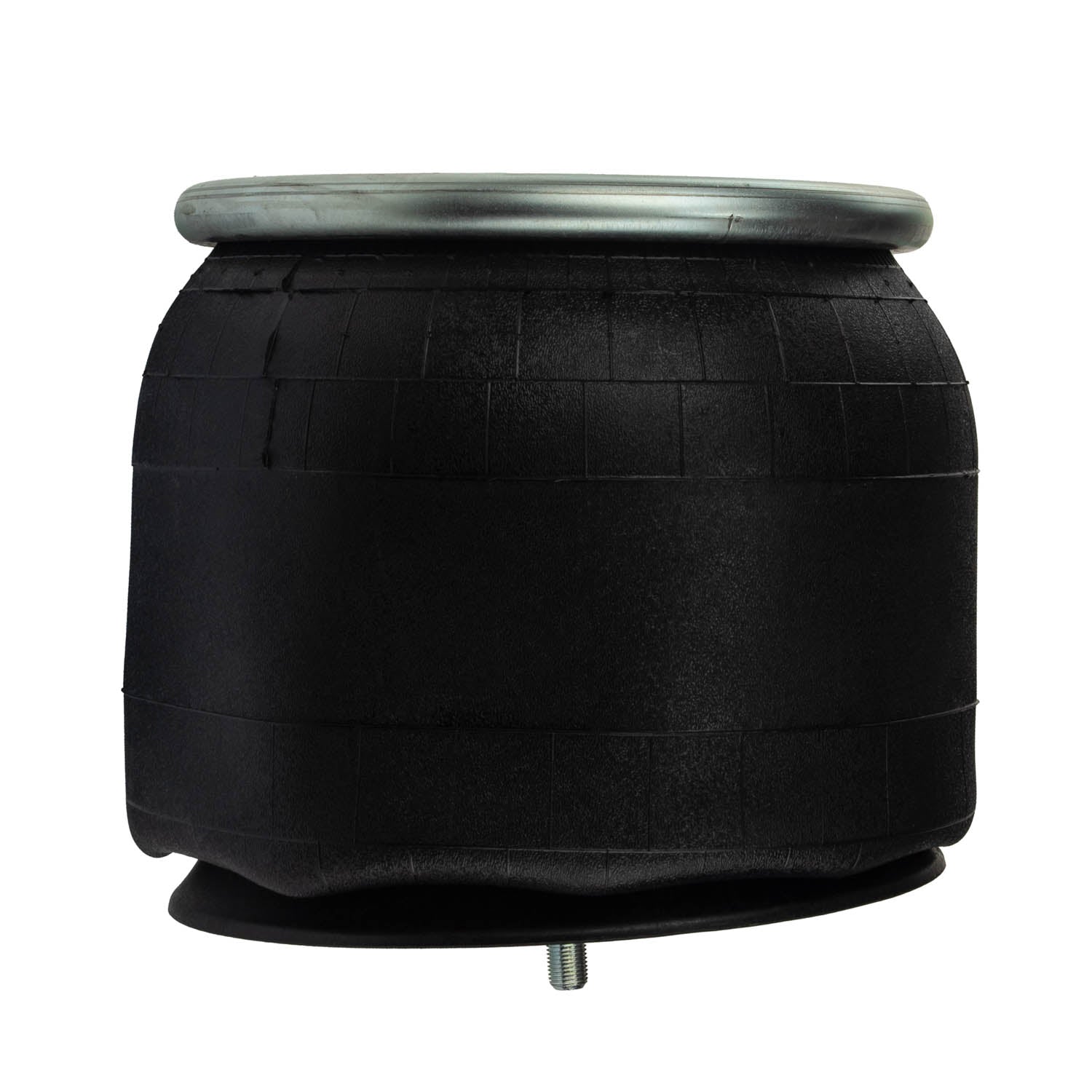

The World American WA01-9069C is a rolling-lobe air spring for the Peterbilt Air Trac suspension. It is an aftermarket replacement for Peterbilt 03-10042 (and the related 03-01649 / 03-02038 / 03-02456 / 03-04759 / 03-06746 / 03-07112 / 23-10042 supersession family). The spring also crosses Firestone 9069, ContiTech AS9069, and Hendrickson S-13031.
Specifications
| Manufacturer | World American |
|---|---|
| Part Number | WA01-9069C |
| Part Type | Air Spring (Rolling Lobe) |
| Design Height | 11.5 in |
| Min / Max Height | 7.6 in / 18.9 in |
| Maximum Diameter | 12.6 in |
| Load Rating @ 80 psi | 5,570 lb |
| Load Rating @ 100 psi | 7,000 lb |
| Top Plate | 9 in dia, 2 holes, 6.2 in C-to-C |
| Bottom Plate | 9.53 in dia, 1 hole, 2.25 in C-to-C, parallel alignment |
| Natural Frequency | 71 Hz |
Cross References
This part replaces or is equivalent to the following part numbers:
- Peterbilt: 03-10042, 23-10042, 03-01649, 03-02038, 03-02456, 03-04759, 03-06746, 03-07112
- Firestone: 9069
- ContiTech (Continental): AS9069, 9 10-14 P 312, 64274
- Goodyear: 1R12-069, 1R12-669, 1R12-676
- Hendrickson: S-13031
- Holland: 57009069
- Meritor: FS9069, RFS9069
- Volvo: 3130497
- Watson & Chalin: AS-0077
- Navistar: 554764C1
- Dayton Parts: 352-9069
- Euclid: E-FS9069
- HDValue: HDV9069
- Triangle Air Springs: AS-4324, 4324
- Also known as: AB1DK23I-9069, 1003589069C, 10-99069, SC2034
Applications
This air spring fits the following truck chassis suspensions:
- Peterbilt Air Trac chassis air suspension
Representative vehicles using this suspension:
- Peterbilt 379, 378, 386, 389 (with Air Trac)
- Volvo VHD vocational chassis
Verify your existing air spring part number and suspension model before ordering.
