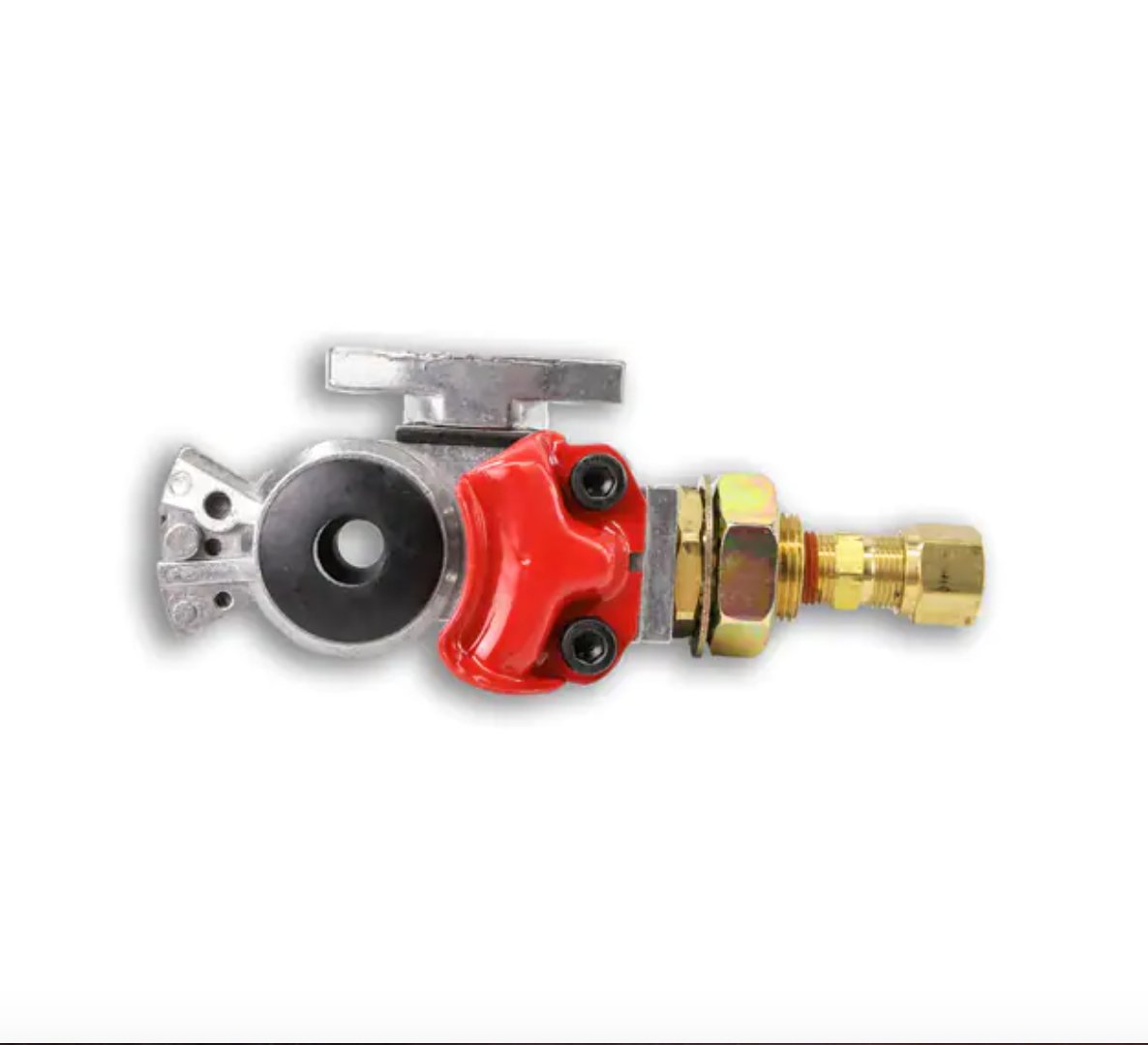

Power Products 36254P is an emergency (red) shutoff gladhand with a 1/2″ tube compression-type fitting on the tractor air brake supply line. The integrated shutoff lever lets the driver isolate the supply line at the back of the tractor when bobtailing or breaking a trailer connection, and the standard SAE polarized port and red anodized finish prevent it from being mated to a service (blue) line.
Specifications
| Manufacturer | Power Products |
|---|---|
| Part Number | 36254P |
| Part Type | Emergency (Red) Shutoff Gladhand |
| Tube Size | 1/2″ OD tube fitting |
| Polarity | Emergency (red) — anodized to mate only with red emergency lines |
Cross References
This gladhand replaces or is equivalent to the following part numbers:
- Phillips Industries: 12-310
- Tramec Sloan: 36254
Applications
This emergency gladhand fits tractor air brake supply lines on Class 7-8 highway tractors using a 1/2″ OD tube supply line. The blue (service) counterpart is Power Products 36154P.
Verify supply-line tube size and confirm you need the emergency (red) port — not the service (blue) port — before ordering. Mismatched gladhands cannot be coupled.
