Description

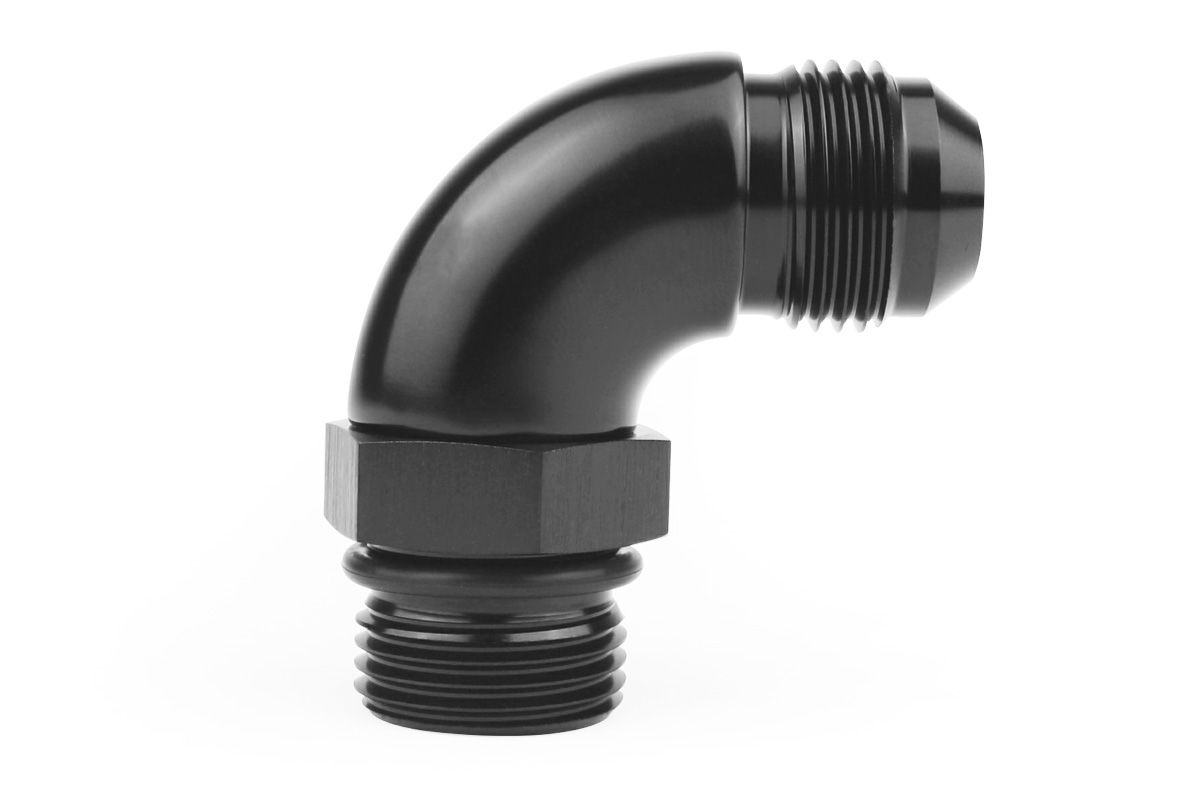

RaceFlux’s low-profile swept fitting provides clearance comparable to expensive banjo fittings. The swept design allows for improved flow rates similar to traditional swept fittings. The fitting uses a separate nut that allows it to swivel 360° for easy installation.
Features and Benefits
- Male straight AN thread O-Ring Boss (ORB) fitting with Viton o-ring, to male AN / JIC flared 37-degree thread
- Compliant with SAE J1926-1 / MS16142 as well as SAE AS5202 / MS33649
- Reusable
- Lightweight black anodized aluminum construction
- Lifetime manufacturer’s warranty
Dimensions
| Part No. | A | B | C |
| MO-090-06-06 | 0.83″ (21mm) | 1.10″ (28mm) | 1.57″ (40mm) |
| MO-090-08-08 | 1.06″ (27mm) | 1.34″ (34mm) | 1.85″ (47mm) |
| MO-090-10-08 | 1.26″ (32mm) | 1.57″ (40mm) | 2.09″ (53mm) |
| MO-090-10-10 | 1.18″ (30mm) | 1.53″ (39mm) | 2.09″ (53mm) |
