Description

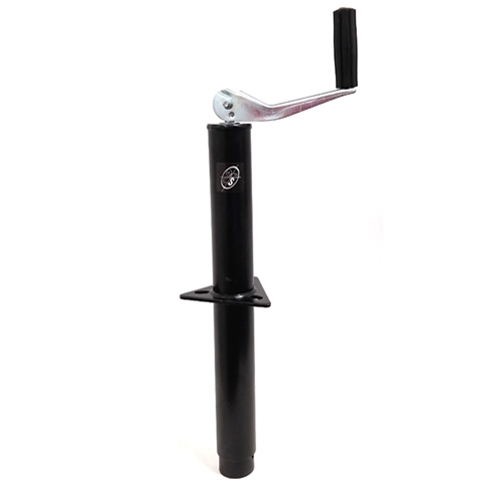

The RAM® 5,000 lbs. A-Frame Trailer Jack is a heavy-duty top wind jack designed for larger trailers with A-frame tongues. This robust A-frame jack provides strong, stable support and is well-suited for boat trailers, utility trailers, equipment trailers, dump trailers, and other applications requiring higher weight capacity.
Part Number: TJA-5000-B, Sold Individually. RAM Ram® 5,000 lbs. A-Frame Trailer Jack.
Key Features
- Part Number: TJA-5000-B
- Brand: RAM®
- Lift Capacity: 3,000 lbs.
- Support Capacity: 5,000 lbs.
- Type: Top wind A-frame jack
- Travel: 14″ travel
- Retracted Height: 10.5″ (bracket to bottom)
- Extended Height: 20″ (bracket to bottom)
- Bracket to Top: 9″
- Tube Diameters: Outer 2-1/4″ | Inner 2″
- Mounting: Bolt-on A-frame design with standard 3″ center-to-center mounting holes
- Finish: Durable exterior grade black powder coat
- Handle: Large black handle with bolt head fastener to prevent loosening; zinc finished handle arm
- Application: Ideal for boat trailers, utility trailers, dump trailers, equipment trailers, and medium to heavy-duty recreational trailers
This heavy-duty A-frame jack offers excellent strength and stability for larger trailers. The top wind design with a secure handle provides reliable operation, while the black powder coat finish offers good corrosion resistance for outdoor use.
Questions about this RAM A-frame jack or need help choosing the right capacity? Call our trailer experts at 1-800-866-3336.
