Description

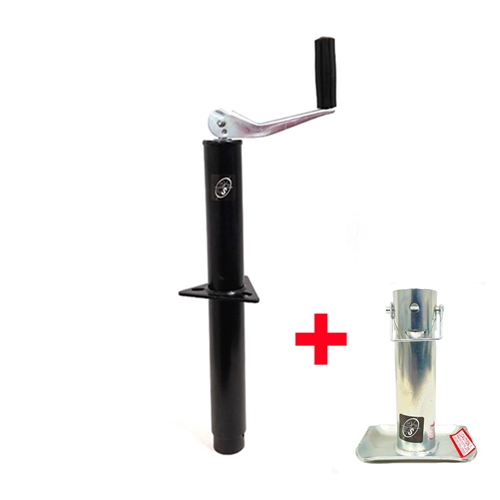

The RAM® 5,000 lbs. A-Frame Trailer Jack with Zinc Round Tube Foot Plate is a heavy-duty and durable jack designed for larger trailers with A-frame tongues. This bolt-on A-frame jack features a top wind handle and a zinc round tube foot, providing stable ground contact and good corrosion resistance. It is well-suited for boat trailers, utility trailers, equipment trailers, dump trailers, and other applications requiring higher capacity.
Part Number: TJA-5000-B-JF-101-Z, Sold Individually. RAM Ram® 5,000 lbs. A-Frame Trailer Jack w/Zinc Round Tube Foot Plate.
Key Features
- Part Number: TJA-5000-B-JF-101-Z
- Brand: RAM®
- Lift Capacity: 3,000 lbs.
- Support Capacity: 5,000 lbs.
- Type: Top wind A-frame jack
- Travel: 14″ travel
- Retracted Height: 10.5″ (bracket to bottom)
- Extended Height: 20″ (bracket to bottom)
- Bracket to Top: 9″
- Tube Diameters: Outer 2-1/4″ | Inner 2″
- Foot Plate: Zinc round tube foot plate, 8.5″ high x 4-1/2″ wide x 6-1/4″ long (rated to hold 2,000 lbs)
- Mounting: Bolt-on A-frame design with standard 3″ center-to-center mounting holes
- Finish: Durable exterior grade black powder coat
- Handle: Large black handle with bolt head fastener to prevent loosening; zinc finished handle arm
- Application: Ideal for boat trailers, utility trailers, equipment trailers, dump trailers, and medium to heavy-duty recreational trailers
This heavy-duty A-frame jack offers reliable support with a sturdy zinc round tube foot plate. The combination of black powder coat finish and zinc components provides good corrosion resistance, while the secure handle design ensures dependable daily operation.
Questions about this RAM A-frame jack or need help choosing the right capacity? Call our trailer experts at 1-800-866-3336.
