Description

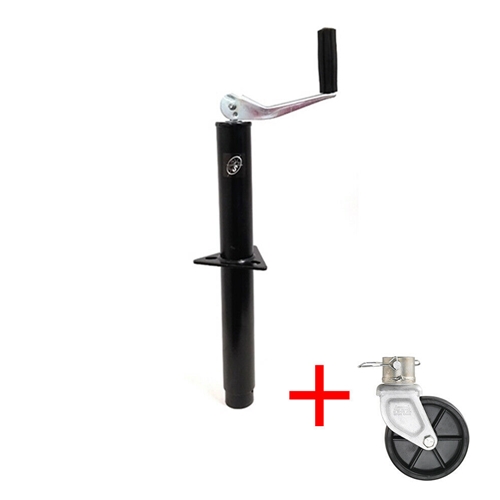

The RAM® 5,000 lbs. A-Frame Trailer Jack with 6″ Poly Caster Wheel is a heavy-duty and convenient jack designed for larger trailers with A-frame tongues. This bolt-on A-frame jack features a top wind handle and a 6″ poly caster wheel, making it easier to maneuver the trailer tongue by hand. It is well-suited for boat trailers, utility trailers, equipment trailers, and other applications requiring higher capacity.
Part Number: TJA-5000-B-JC-101, Sold Individually. RAM Ram® 5,000 lbs. A-Frame Trailer Jack with 6″ Poly Caster Wheel.
Key Features
- Part Number: TJA-5000-B-JC-101
- Brand: RAM®
- Lift Capacity: 3,000 lbs.
- Support Capacity: 5,000 lbs.
- Type: Top wind A-frame jack
- Travel: 14″ travel
- Retracted Height: 10.5″ (bracket to bottom)
- Extended Height: 20″ (bracket to bottom)
- Bracket to Top: 9″
- Tube Diameters: Outer 2-1/4″ | Inner 2″
- Caster: 6″ Poly Caster Wheel (6″ diameter x 2″ wheel thickness, rated to hold 1,200 lbs)
- Mounting: Bolt-on A-frame design with standard 3″ center-to-center mounting holes
- Finish: Durable exterior grade black powder coat
- Handle: Large black handle with bolt head fastener to prevent loosening; zinc finished handle arm
- Application: Ideal for boat trailers, utility trailers, equipment trailers, and medium to heavy-duty recreational trailers
This heavy-duty A-frame jack combines strong support with added convenience. The 6″ poly caster wheel allows for smoother movement of the trailer tongue without having to lift the jack, making it especially useful for larger trailers that are frequently repositioned by hand.
Questions about this RAM A-frame jack or need help choosing the right capacity? Call our trailer experts at 1-800-866-3336.
Browse more 5K A-Frame Trailer Jacks.
