Description

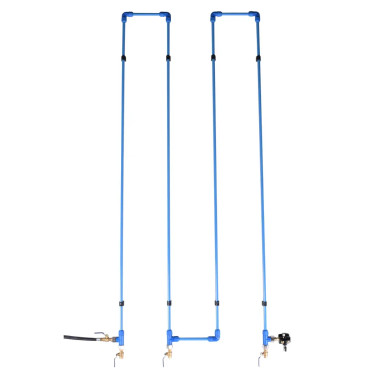

Rapid Air F28092 1″ Fastpipe Cooling Kit
Features
- Easy to install, versatile solution to eliminate excess moisture in an air system.
- Hot air flows into the cooling loop and travels a total distance of approximately 27 feet, cooling the air and causing water vapor to condense.
- Rectangular construction allows for easy draining through the ball valves.
- Inexpensive compared to the cost of a powered air dryer or aftercooler.
kit includes:
| Quantity | |
| 4 | F2863 1″ x 7’6″ Pipe |
| 5 | F2003 1″ Fastpipe Elbows |
| 3 | F2009 1″ Fastpipe Reducing Tee x 1/2″ Fnpt |
| 2 | F3100 1″ Fastpipe Large Hex Nut |
| 2 | F3111 1″ Fastpipe Insert Gasket |
| 2 | F3175 1″ Fastpipe Brass Insert X 3/4″ Fnpt |
| 1 | K35075M 3/4″ Npt Male X Female Brass Ball Valve |
| 3 | K35050M 1/2″ Npt Male X Female Brass Ball Valve |
| 1 | 50620 3/4″ X 1/2″ Npt Brass Hex Nipple |
| 1 | F2025 Wall Outlet W 3/4″ Fnpt Inlet |
| 1 | F0142 Deburr Tool |
| 2 | F2020 1″ Spanner Wrench |
| 1 | F2022-10 1″ Fastpipe Wall Clips (10 Pack) |
| 1 | F0215 3/4″ X 3Ft Compressor Jumper Hose |
