Description

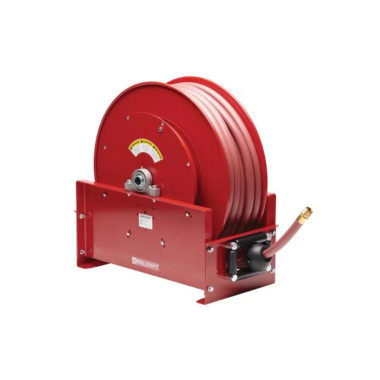

Reelcraft E9399 OLPBW 3/4″ X 100′ Hose Reel
Reelcraft’s Series E9000 mobile base hose reels offer the greatest amount of stability. Ideal for service trucks, permanent service, or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications. Contact Reelcraft for top wind and side wind hose guide conversion kits.
- Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class.
- Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Robust latching mechanism – The latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
- Reels are shipped in the bottom wind position with a right-hand inlet.
NOTE: Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.
Reel Specifications and Dimensions
| Weight | 153 lbs |
|---|---|
| Series |
9000 |
| Hose I.D. |
3/4″ |
| Hose O.D. |
1.075″ |
| Hose Length |
100′ |
| Pressure |
250 psi |
| Hose End |
3/4″ NPT(M) |
| Inlet |
3/4″ NPT(F) |
| Reel Outlet |
3/4″ NPT(F) |
| Hose Included |
Yes |
| Max Temperature |
150 °F |
| UPC |
699567028574 |
| Carton Dimensions |
28″ x 13.5″ x 29″ |
