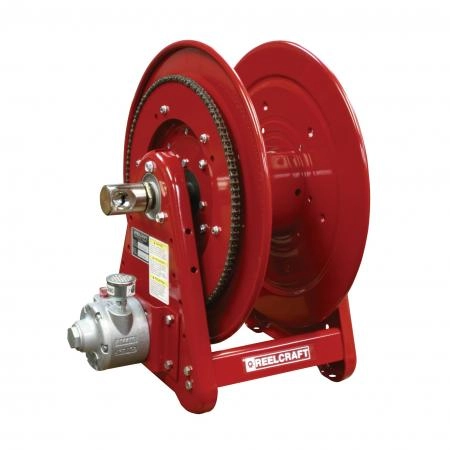

Reelcraft – AA32106 L4A – Premium Duty Air Motor Driven Air and Water Hose Reel
Reelcraft-s Series 30000 hose reels are designed for rugged applications requiring long lengths of hose and large storage capacity. The all-bolted, unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.Quality finish and corrosion resistant – Individually powder-coated components offer maximum protection from premature corrosion.Motor options – Multiple motor options provide an easy method to rewind long lengths of hose.This model is supplied with a 4 AM motor for up to 1″ hp.
Specifications
- Inlet:1/2″ NPT(F)
- Outlet:1/2″ NPT(F)
- PSI:1000 psi
- Max Temperature:210 °F
- Hose I.D.:1/2″
- Hose O.D.:0.75″
- Hose Length:100′
- Hose Included:No
Dimensions
| A | 20.25″ |
| B | 17.75″ |
| C | 9″ |
| D | 9.75″ |
| E | 17.25″ |
| F | 6″ |
