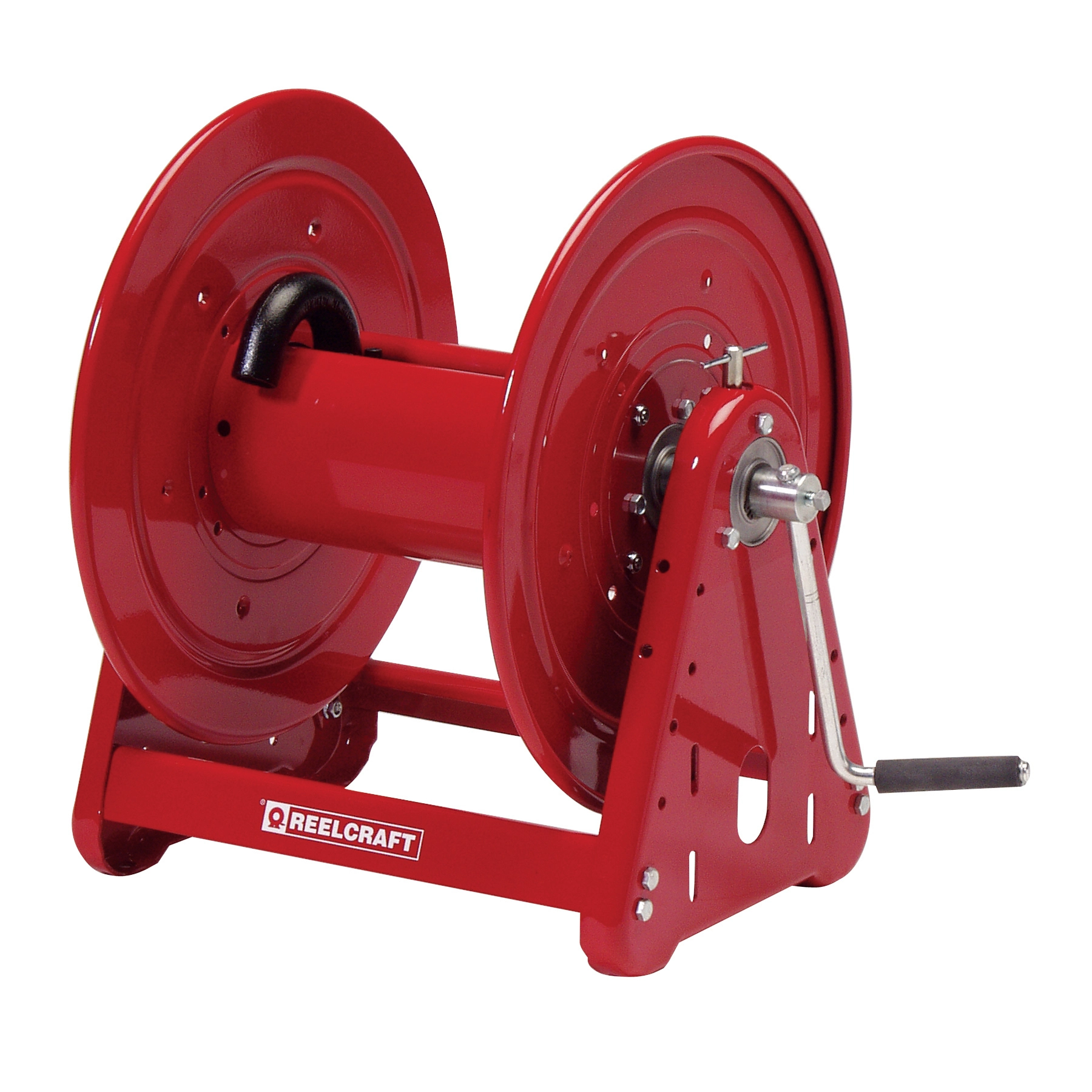

Reelcraft – CA38112 M – Premium Duty Hand Crank Pressure Wash Hose Reel
Reelcraft’s Series 30000 hose reels are designed for rugged, heavy-duty applications requiring long lengths of hose and large storage capacity. The all-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.Easy to add tension – The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
Specifications
- Inlet:1/2″ NPT(F)
- Outlet:1/2″ NPT(F)
- PSI:5000 psi
- Max Temperature:210 °F
- Hose I.D.:1/2″
- Hose O.D.:0.85″
- Hose Length:200′
- Hose Included:No
Dimensions
| A | 20.25″ |
| B | 17.75″ |
| C | 9″ |
| D | 15.75″ |
| E | 25.75″ |
| F | 12″ |
