Description

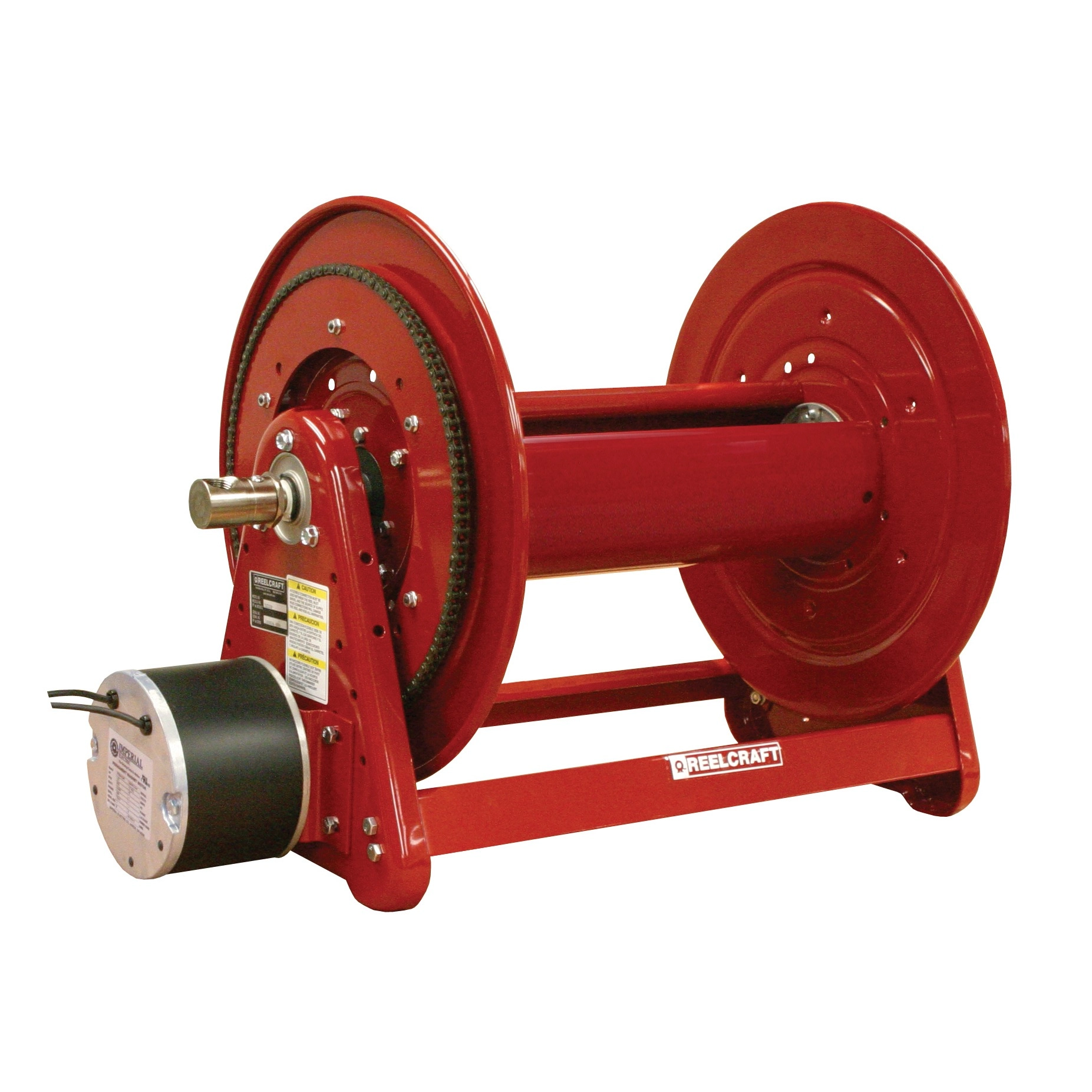

Reelcraft – EA33112 L12D – 12V Electric Rewind Air and Water Hose Reel
Reelcraft-s Series 30000 hose reels are designed for rugged applications requiring long lengths of hose and large storage capacity. The all-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.
- Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel.
- Quality finish and corrosion resistant – Individually powder-coated components offer maximum protection from premature corrosion.
- Motor options – Multiple motor options provide an easy method to rewind long lengths of hose.
- The model is supplied with a 12 V DC motor.
- Made in the USA
Specifications
- Inlet:3/4″ NPT(F)
- Outlet:3/4″ NPT(F)
- PSI:1000 psi
- Max Temperature:210 °F
- Hose I.D.:3/4″
- Hose O.D.:1.075″
- Hose Length:100′
- Hose Included:No
Dimensions
| A | 20.25″ |
| B | 17.75″ |
| C | 9″ |
| D | 15.75″ |
| E | 23.875″ |
| F | 12″ |
