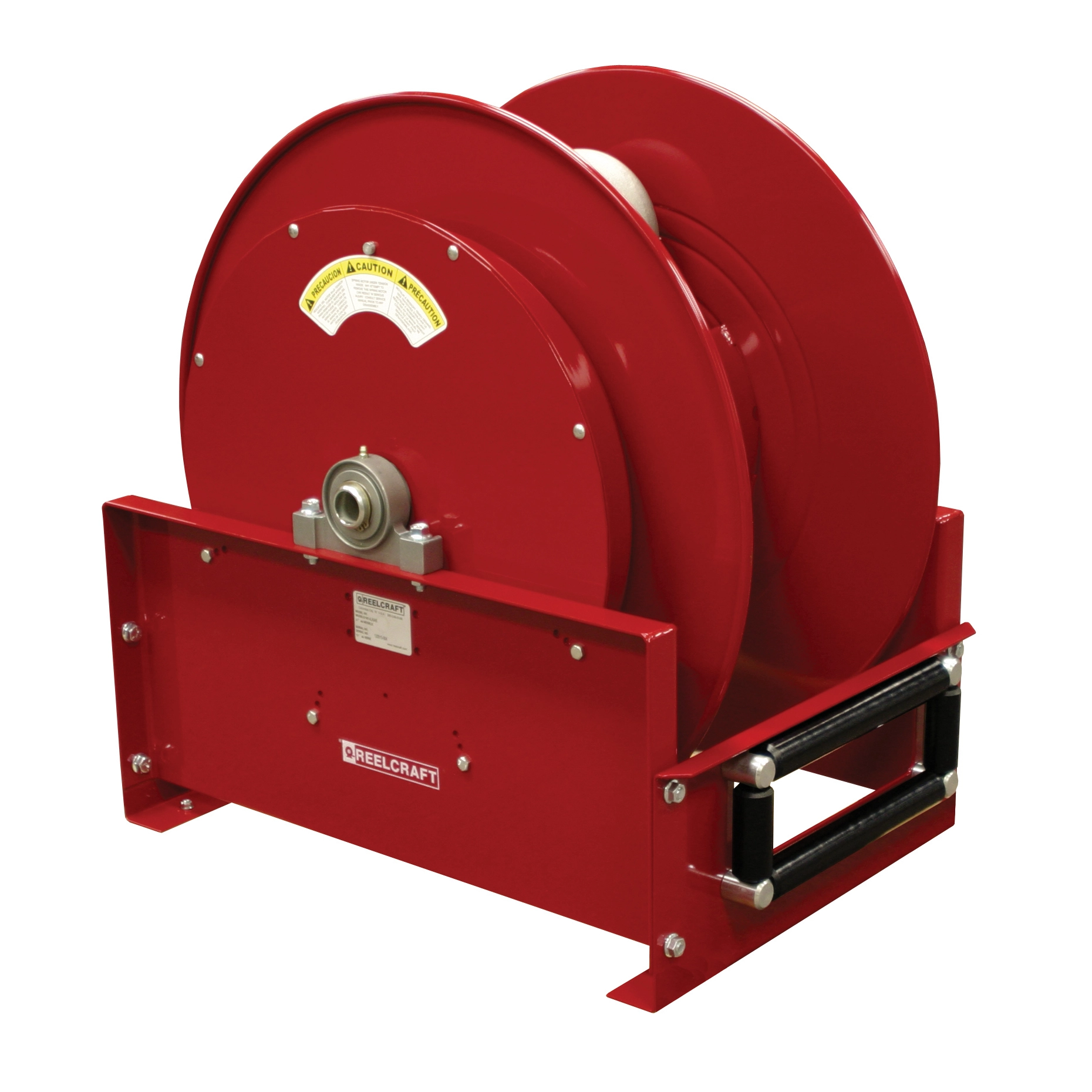

Reelcraft – FF9600 OLPBW – Spring Rewind Fuel Hose Reel
Reelcraft’s spring retractable fuel delivery hose reels, equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD9000 reels are supplied with our ball-bearing style swivel. Contact Reelcraft for top wind and bottom wind hose guide models.
- Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class.
- Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Quality finish and corrosion resistance – Individually powder-coated components offer the maximum protection from premature corrosion.
- The reel is shipped in the bottom wind position with a right-hand inlet.
- Made in USA
Specifications
- Inlet:1 1/2″ NPT(F)
- Outlet:1 1/2″ NPT(F)
- PSI:600 psi
- Max Temperature:210 °F
- Hose I.D.:1 1/2″
- Hose O.D.:2.000″
- Hose Length:50′
- Hose Included:No
Dimensions
| A | 26.375″ |
| B | 26.25″ |
| C | 22.25″ |
| D | 13.5″ |
| E | 17.75″ |
| F | 24.125″ |
| G | 3.875″ |
