Description

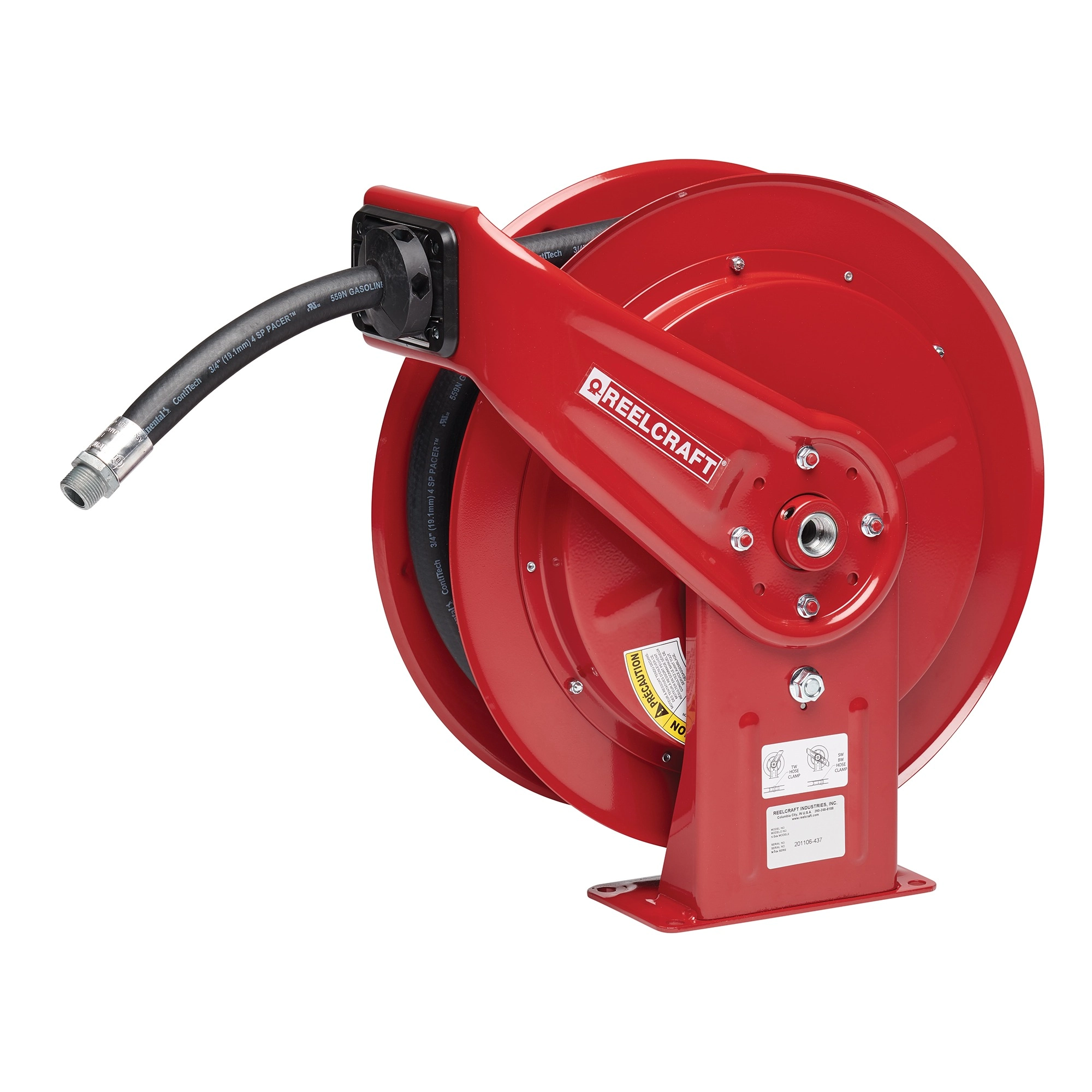

Reelcraft – FHD79035 OLP – Spring Rewind Fuel Hose Reel
Reelcraft’s spring retractable Series HD70000 fuel delivery hose reels, equipped with Viton seals, incorporate metal forms and a heavy-duty base to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series F7000 reels are supplied with our ball-bearing style swivel.
- Compact design – Reels are 25% smaller than our heavy-duty Series 80000 reels.
- Guide rollers – The one-piece design and stainless steel pins offer greater strength and easier serviceability.
- Ease of operation – The high quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation.
- Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
- Made in USA
Specifications
- Inlet:3/4″ NPT(F)
- Outlet:3/4″ NPT(F)
- PSI:50 psi
- Max Temperature:150 °F
- Hose I.D.:3/4″
- Hose O.D.:1.188″
- Hose Length:35′
- Hose Included:Yes
Dimensions
| A | 20.25″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 8.25″ |
