Description

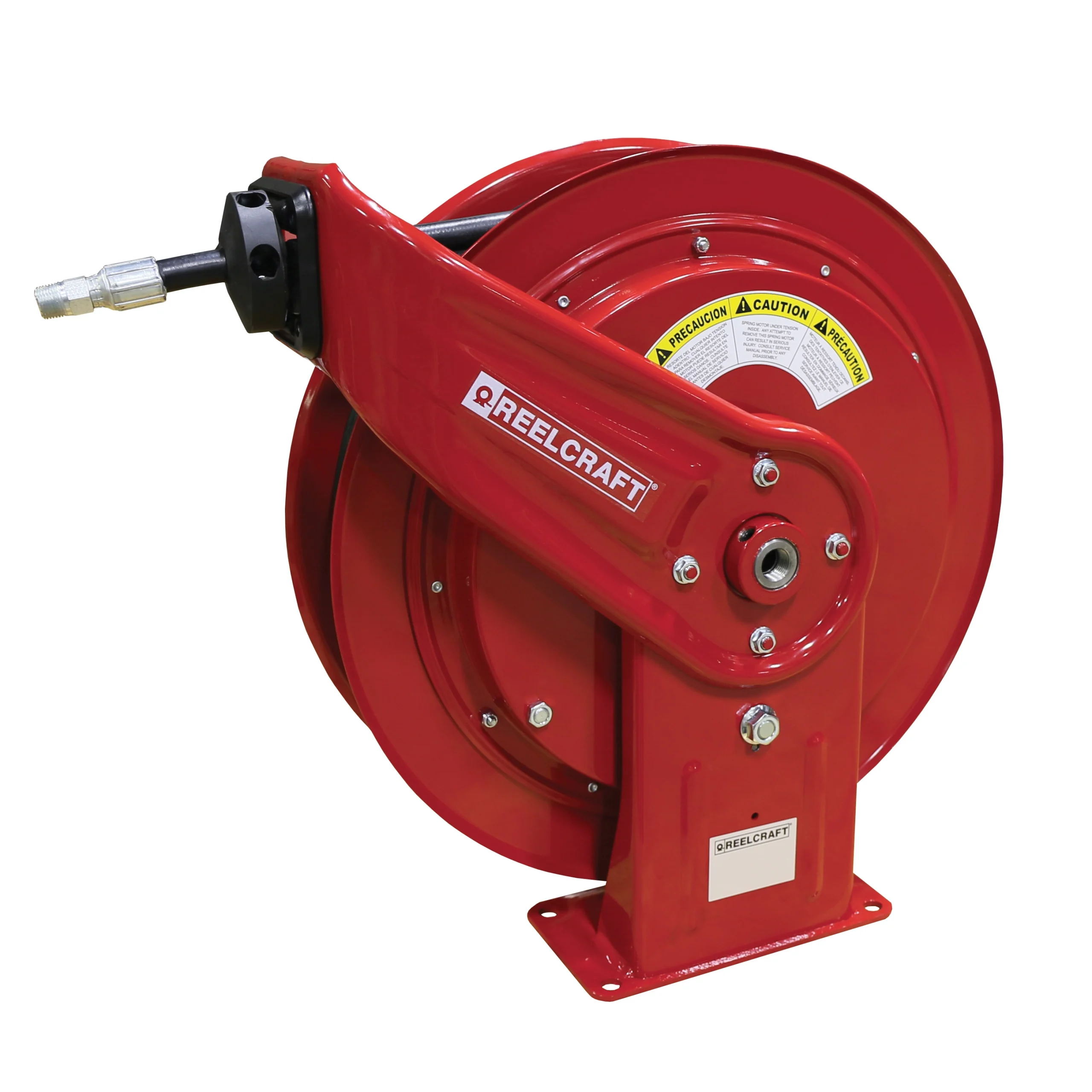

Reelcraft – HD74100 OHP – Spring Rewind Heavy Duty Grease Hose Reel
Reelcraft’s Series HD70000 hose reels incorporate a heavy-duty base design, all-steel construction and a baked-on powder coat finish to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life for the latch components. The one-piece guide roller design and stainless steel pins offer greater strength and easier serviceability. The high quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation.
- Compact design – Reels are 25% smaller than our heavy-duty Series 80000 reels.
- Guide rollers – The one-piece design and stainless steel pins offer greater strength and easier serviceability.
- Ease of operation – The high quality, die-cast aluminum hub, and two sealed ball bearings produce a smoother spool rotation and easier operation.
- Made in USA
Specifications
- Inlet:1/2″ NPT(F)
- Outlet:3/8″ NPT(F)
- PSI:5000 psi
- Max Temperature:210 °F
- Hose I.D.:1/4″
- Hose O.D.:0.58″
- Hose Length:100′
- Hose Included:Yes
Dimensions
| A | 20.5″ |
| B | 19.75″ |
| C | 7.8125″ |
| D | 3.875″ |
| E | 8.5″ |
