Description

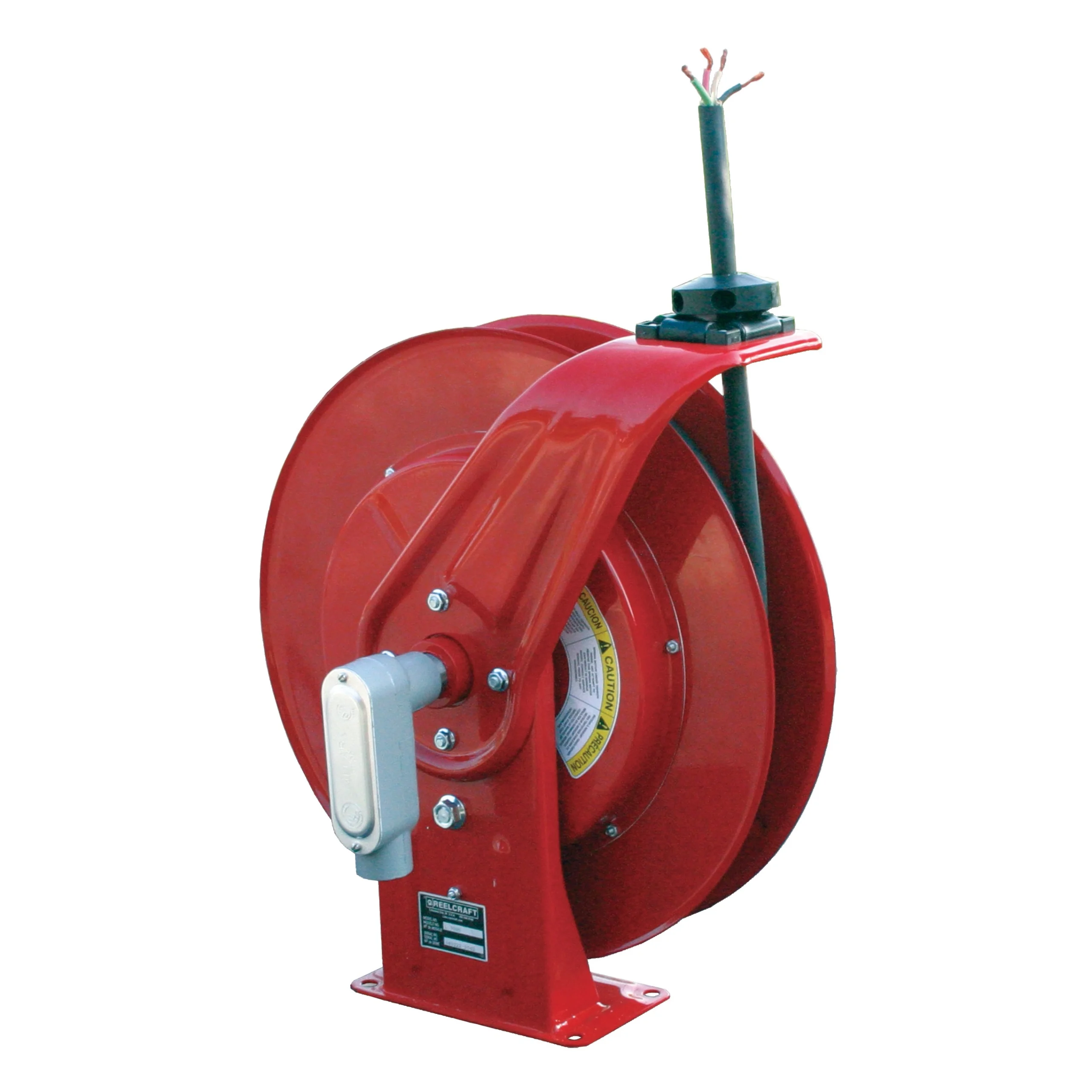

Reelcraft – L 7050 104 X – Spring Rewind Cord Reel
Reelcraft’s Series L NM400 cord reels are NEMA 4 rated and designed for indoor and outdoor use. The guide arm is adjustable every 5- over a 270° arc allowing for the exact configuration to suit a wide range of applications. The containerized drive spring allows for safer, easier handling during maintenance. The heavy-duty cast aluminum design and powder coat finish combine to produce a rugged, corrosion-resistant product. *UL/CSA approved*
- NEMA 4 rating provides protection against water or dust, indoor and out
- Large, easy to access junction box
- Cast aluminum construction with yellow powder coat finish
- One inch (NPT) pipe thread opening provided for conduit inlet
Specifications
- Volts:600
- Cord/Cable Length:50′
- Cord/Cable Included:Yes
- Cord Ending:Flying Lead
- Conductors:4
Dimensions
| A | 20.25″ |
| B | 19.75″ |
| C | 7.875″ |
| D | 3.875″ |
| E | 14.625″ |
