Description

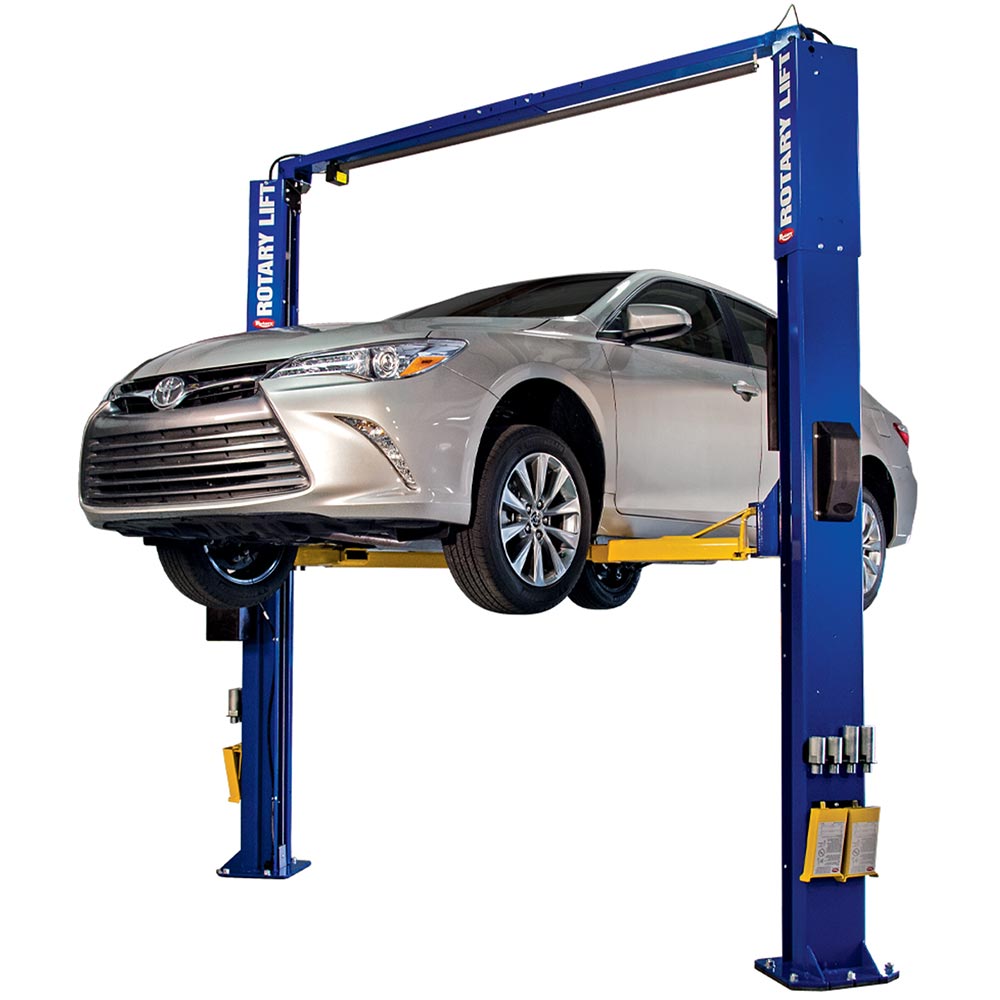

Rotary SPOA10N150x Lift w/Flip Up Adapters
The Rotary SPOA10N15 2-Stage Lift is engineered for top performance with a 10,000 lbs. lifting capacity. It features an asymmetric column design and 2-stage lift arms for enhanced strength and versatility. The innovative flip-up FA adapters allow for multiple lifting heights, making it ideal for both passenger cars and trucks. Designed to withstand over 20,000 cycles, this ALI Gold Certified lift guarantees durability and longevity, meeting the highest industry standards. It is built with a direct drive hydraulic system and automatic safety features, ensuring smooth operation with every use.
Key Features:
- Lifting Capacity: 10,000 lbs.
- Motor Rating: 2HP, 208-230V, 60Hz, 1 PH, 12 – 16 amps, 20A circuit
- Lifting Height: 72 3/4″ – 78 1/4″
- Overall Floor Width: 11′ 5 3/8″
- Overall Height: 11′ 8 1/2″
- Column Steel Thickness: 1/4″
- Shipping Weight: 1,750 lbs.
- Floor to Ceiling Height: 144″ minimum
- Drive Thru: 95 1/4″
- Low Pad Height: 4 3/4″
- High Step Pad Height: 10 1/4″
- Lifting Time: 48 seconds unloaded, 53 seconds at rated capacity
- Hydraulic Oil: AW32 or AW46
- Concrete Requirement: 4 1/4″ Depth, 3000 PSI
- Flip-Up Adapters: 3 step positions (4 3/4″, 7″, and 10 1/4″)
- Heavy-Duty Arm Restraint System: Oversized gears, pins, and springs
- Safety Features: Hydraulic safety system, automatic locking restraints, padded overhead shut-off bar
