Description

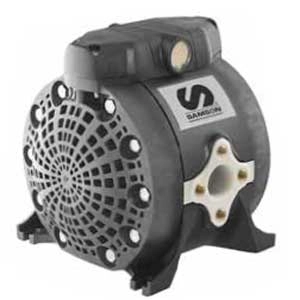

Samson – 551164 – DirectFlo 100 Poly Diaphragm Pump
Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.
- Pump Pressure Ratio – 1:1
- Maximum Free Flow Rate – 28 gal/min (106 l/min)
- Maximum Suction Lift – 23′
- Minimum Air Pressure – 20 psi (1.5 bar)
- Maximum Air Pressure – 115 psi (18 bar)
- Max Size Solid Suspension – 3/16″
- Air Inlet – 3/8″ NPTF
- Fluid Outlet – 1″ NPTF
- Fluid Inlet – 1″ NPTF
