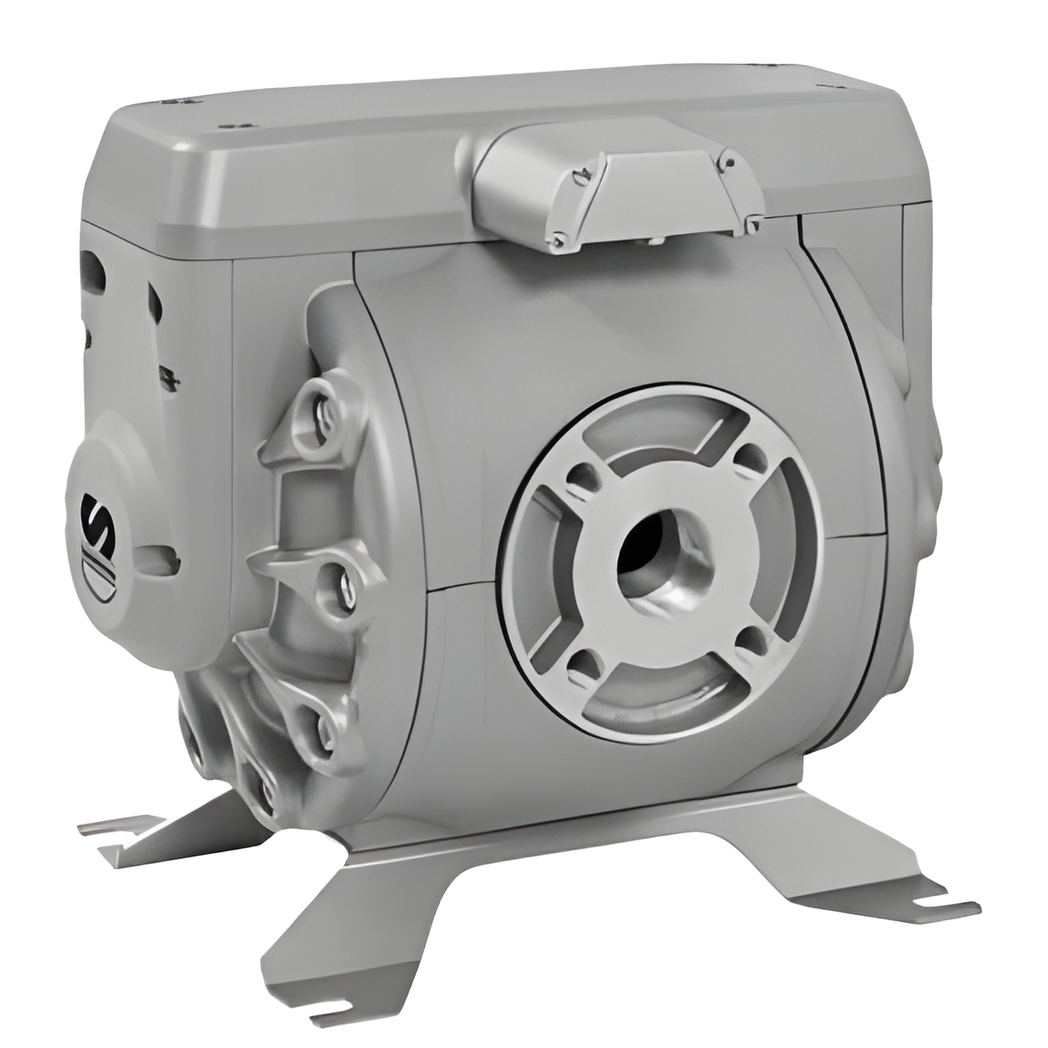

Samson – 554030 – Directflo 250 Aluminum Diaphragm Pump
Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.
- Pump Pressure Ratio – 1:1
- Maximum Free Flow Rate – 66 gal/min (250 l/min)
- Maximum Suction Lift – 26′
- Minimum Air Pressure – 20 psi (1.5 bar)
- Maximum Air Pressure – 115 psi (18 bar)
- Max Size Solid Suspension – 1/4″
- Air Inlet – 1/2″ NPTF
- Fluid Outlet – 1 1/2″ NPTF
- Fluid Inlet – 1 1/2″ NPTF
- Wetted Materials – TPE, Aluminum, Acetal
