Description

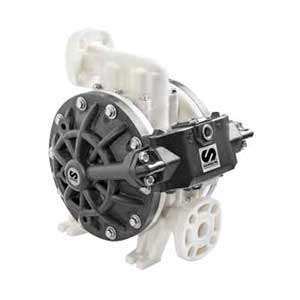

Samson – 555164 – Directflo 200 Plastic Diaphragm Pump
Typical applications for polypropylene pumps are transferring and dispensing of Windshield wash and antifreeze solutions and AdBlue/DEF.
Metal pumps have an Aluminum air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions, lubricants, diesel, and waste oil evacuation.
Pump inlet and outlet ports can be mounted in different positions for increased installation versatility.
- Pump Pressure Ratio – 1:1
- Maximum Free Flow Rate – 53 gal/min (200 l/min)
- Maximum Suction Lift – 26′ (8 m)
- Minimum Air Pressure – 22 (1.5 bar)
- Maximum Air Pressure – 120 psi (8 bar)
- Max Size Solid Suspension – 1/4″ (6 mm)
- Air Inlet – 3/8″ NSPM (F)
- Fluid Outlet-Plastic – 1″ DIN PN-10 DN25 Flange and ANSI B16.5 1″ 150 lb flange
- Fluid Outlet-Metal – 1″ NPTF
- Fluid Inlet-Plastic – 1″ DIN PN-10 DN25 Flange and ANSI B16.5 1″ 150 lb flange
- Fluid Inlet-Metal – 1″ NPTF
