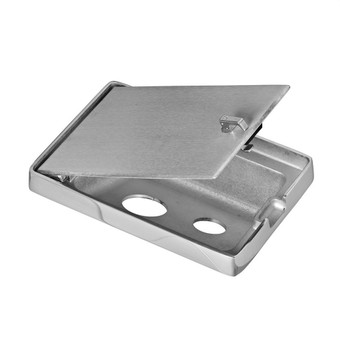

Description
| Filler Neck Hole Opening Diameter: | Drill Your Own – Standard is 2-3/8″ |
| Def Hole Diameter: | Drill Your Own – Standard is 1-5/8″ |
| Neck Offset Angle: | 21 Degrees. |
| Length From Back of Flange: | 2.90″ at Deepest Point / Top |
| Surface Flange Dimensions OUTER: | 11.83” Wide X 7.87″ Tall. |
| Surface Flange Dimensions INNER: | 9.27” Wide, 6.22 Tall. |
| Finish: | Ball Burnished with exterior flange polished and lid face 120 grit ground |
| Material: | A356.2 Aluminum. |
| Installation Notes: | You will need to drill the holes to mount the filler neck and def neck, |
