Description

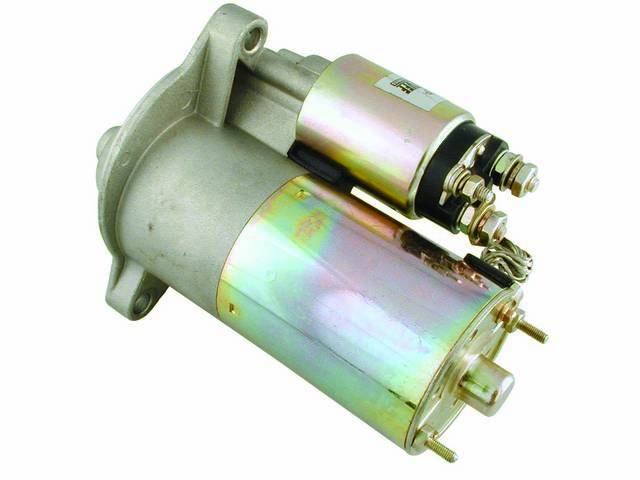

Weight 5.5 pounds.1.9 horsepower, 1.4 Kw power.Mini sized for extra clearance.Includes necessary wire lead and illustrations.
3/8 offset.Offset is the distance from the starter mounting surface to the engine side of the ring gear.Fits 4.084 diameter block plate.The applications listed are original listings.We have found some mixing has occurred over the years.Check your measurement before ordering.
Typically the 3/8 offset starter is used on M/T flywheels with 164 teeth.
Note use of a PMGR style starter with a computer controlled engine requires the addition of a diode suppressed starter solenoid relay switch (11450).See F-11450-5 (Motorcraft) or M-11450-4B (replacement), for a proper solenoid.
Note the manufacturers installation instructions may suggest a bolt torque of 38 ft/lbs.Unless you have non-original grade 8 bolts limit this to 10-20 ft/lb using factory bolts.
See 11002-4AK, 11002-5AK for mounting hardware options.
Ford Mustang and Shelby Years:
1964 1/2 (64 1/2), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Mercury Cougar Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Ford Falcon and Ranchero Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Fairlane and Ranchero Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Torino and Ranchero Years:
1968 (68), 1969 (69), 1970 (70), 1971 (71)
Above years shown are used for searches and are not application listings.
Ford Truck F1, F2, F3, F100, F150, F250, F350, Expedition, Excursion, Lincoln Navigator and Blackwood Years:
1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91)
Above years shown are used for searches and are not application listings.
Ford Bronco Years:
1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91)
Above years shown are used for searches and are not application listings.
Ford Mustang Fox Body, Capri, SN-95, S197, S550 Years:
1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95), 1996 (96), 1997 (97), 1998 (98), 1999 (99), 2000 (00), 2001 (01), 2002 (02), 2003 (03), 2004 (04), 2005 (05), 2006 (06), 2007 (07), 2008 (08), 2009 (09), 2010 (10), 2011 (11), 2012 (12), 2013 (13), 2014 (14), 2015 (15)
Above years shown are used for searches and are not application listings.
NPD Part Number : 11002-5HT
Manufacturer Reference ‘s: Tuff-Stuff 6132B, C5TZ-11002-D, SA661
Product Instructions and Additional Info:
Mini High Torque Starter Instruction
11002-5HT Detail A
