Description

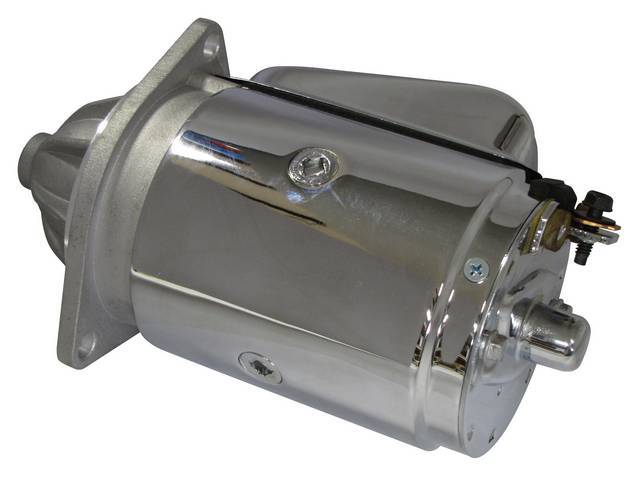

All new.2 bolt mounting.3/4″offset.
Offset is the distance from the starter mounting surface to the engine side of the ring gear (see diagram).Fits 4.084diameter block plate.The applications listed are original listings.We have found some mixing has occurred over the years.Check your measurement before ordering.Typically the offset Ford starter is used on M/T with 157 or 160 tooth flywheels and all A/T (157, 160 or 164 tooth flexplates).
1.9 horsepower, 1.4 Kw.
9-Tooth Pinion Gear
Direct Drive
Heat Treated Shaft
Specially Wound Cooper Armature
100% New Components
Tuff Stuff starters are hand made from premium quality new components – not remanufactured – and are quality built in USA. Most Gear Reduction style starters, which are considerably smaller than the OE starters, incorporate a mounting block that can be indexed to gain additional clearance. Starters include mounting bolts and shims where applicable. Ideal for high horsepower muscle cars, hot rods, trucks and daily-drivers. Finishes include chrome plated, zinc plated and powder coated.
See 11002-4AK, 11002-5AK for mounting hardware options.
Ford Mustang and Shelby Years:
1964 1/2 (64 1/2), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Mercury Cougar Years:
1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73)
Above years shown are used for searches and are not application listings.
Ford Falcon and Ranchero Years:
1960 (60), 1961 (61), 1962 (62), 1963 (63), 1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Fairlane and Ranchero Years:
1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70)
Above years shown are used for searches and are not application listings.
Ford Torino and Ranchero Years:
1968 (68), 1969 (69), 1970 (70), 1971 (71)
Above years shown are used for searches and are not application listings.
Ford Thunderbird Years:
1955 (55), 1956 (56), 1957 (57)
Above years shown are used for searches and are not application listings.
Ford Truck F1, F2, F3, F100, F150, F250, F350, Expedition, Excursion, Lincoln Navigator and Blackwood Years:
1948 (48), 1949 (49), 1950 (50), 1951 (51), 1952 (52), 1953 (53), 1954 (54), 1955 (55), 1956 (56), 1957 (57), 1958 (58), 1959 (59), 1960 (60), 1961 (61), 1962 (62), 1963 (63), 1964 (64), 1965 (65), 1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95), 1996 (96), 1997 (97), 1998 (98), 1999 (99), 2000 (00), 2001 (01), 2002 (02), 2003 (03), 2004 (04), 2005 (05), 2006 (06)
Above years shown are used for searches and are not application listings.
Ford Bronco Years:
1966 (66), 1967 (67), 1968 (68), 1969 (69), 1970 (70), 1971 (71), 1972 (72), 1973 (73), 1974 (74), 1975 (75), 1976 (76), 1977 (77), 1978 (78), 1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95), 1996 (96)
Above years shown are used for searches and are not application listings.
Ford Mustang Fox Body, Capri, SN-95, S197, S550 Years:
1979 (79), 1980 (80), 1981 (81), 1982 (82), 1983 (83), 1984 (84), 1985 (85), 1986 (86), 1987 (87), 1988 (88), 1989 (89), 1990 (90), 1991 (91), 1992 (92), 1993 (93), 1994 (94), 1995 (95), 1996 (96), 1997 (97), 1998 (98), 1999 (99), 2000 (00), 2001 (01), 2002 (02), 2003 (03), 2004 (04), 2005 (05), 2006 (06), 2007 (07), 2008 (08), 2009 (09), 2010 (10), 2011 (11), 2012 (12), 2013 (13), 2014 (14), 2015 (15)
Above years shown are used for searches and are not application listings.
NPD Part Number : 11002-4D
Manufacturer Reference ‘s: Tuff-Stuff 3124A, C2OZ-11002-A, C2OZ-11002-B, SA-660, D4OZ-11002-A, D7OZ-11002-A
Product Instructions and Additional Info:
11002-4D Detail A
11002-4D Techdata
