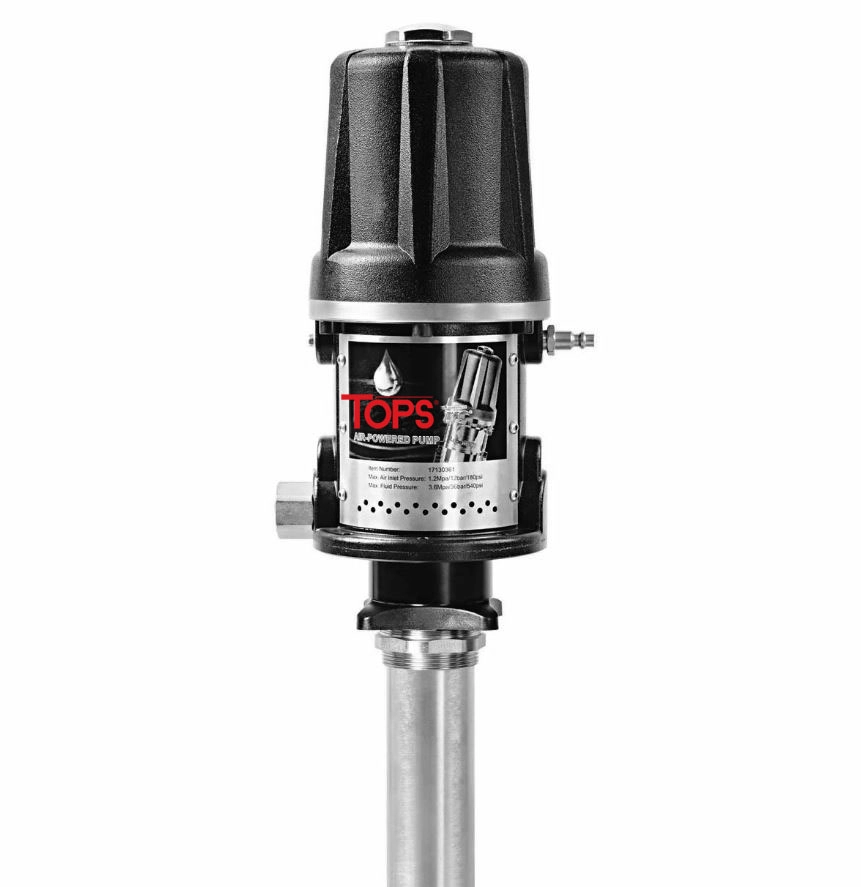

TOPS – T-17130563 – 5:1 Heavy Duty Air Operated Oil Pump
- The 5:1 is perfect for fluid oil transfer in high volume and longer distance applications such as truck shop service fleet facilities and in-plant applications.
- Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
- Few moving parts in the air motor assembly means less downtime and low repair cost.
- Large air porting design provides efficient use of compressed air supply for continuous pump operation without icing.
Specifications:
- Drum Application: 400 lb
- Pressure Ratio: 5:1
- Air Inlet Pressure: 70-170 psi
- Max. Fluid Pressure: 870 psi
- Air Motor Effective Diameter: 3 in.
- Air Consumption: 115 psi (21.6 CFM)
- Max. Free Flow Rate: 11 Gallon/min
- Suction Tube Diameter: 2.2 in.
- Suction Tube Length: 859mm/34 in.
- Air Inlet Connection: 3/8 in. NPT Quick Plug, 3/8 in. NPT Female
- 3/4 in. NPT Female
