Description
Manuals and Information:
Spec Sheet
700-20/25 Owner’s Manual

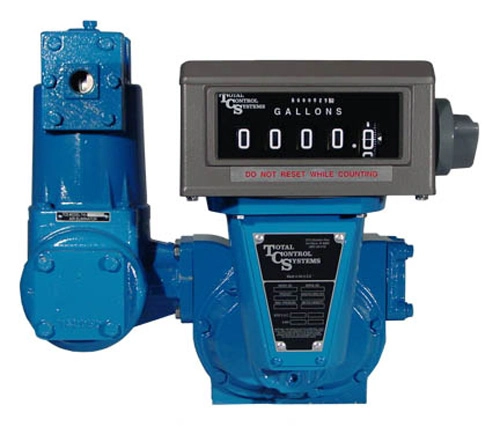

The TCS 700 Series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life. The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.
NOTE: Please verify all information for the product before making a purchase. Product images showing meter, eliminator, register, printer, valve etc. are only a representation of the product and may not fully depict the final product received as a result of selected configurations or limited image availability. For any questions or clarification for Total Control Systems products please give us a call at 1-800-433-8831.
