Description

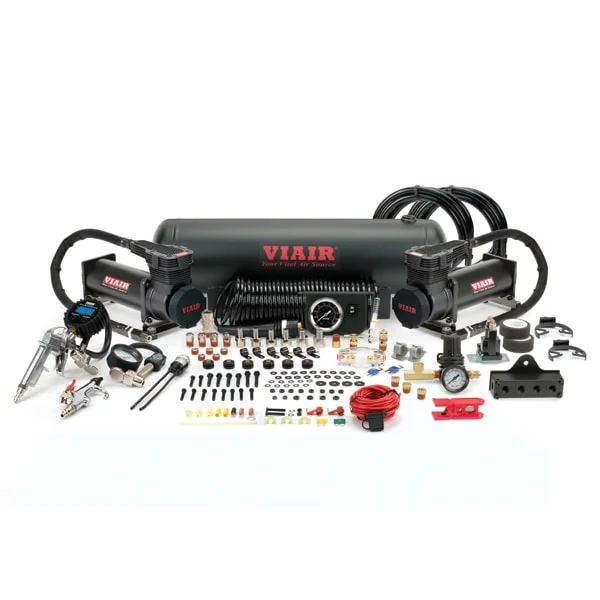

VIAIR’s Dual 485C Onboard Air System (OBA) is Viair’s first OBA with 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.
The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
Downloadable Resources:
- Manual
- Dimensional Drawing
- Wiring Diagram
KEY FEATURES:
- 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
- (2) 485C VIAIR (Platinum or Stealth Black) Compressors w/Thermal Overload Protectors
- Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
- Digital Tire Inflation Gun (180PSI)
- 0-220 PSI Pressure Regulator
- Sealed Pressure Switch (165 PSI on, 200 PSI off)
- 1/4” Drain Cock
- Heavy Duty 80-Amp Relay
- Mini ANL Fuse Holder with 60-Amp Fuse
- 1/4” Quick Connect Coupler (M)
- 1/4” 250 PSI Safety Valve
- (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
- 6-Port Billet Manifold with Mounting Bracket (1/4”)
- (2) 20ft. 1/4” Air Line Included
- 5pc. 1/4” NPT Plugs Kit
- Extension Braided Black Coil Hose
- Rubber Tip Blow Gun
- 3-in-1 Air Down Gauge
- Stainless Steel Air Line Cutter
SPECS:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 44-Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
