Description

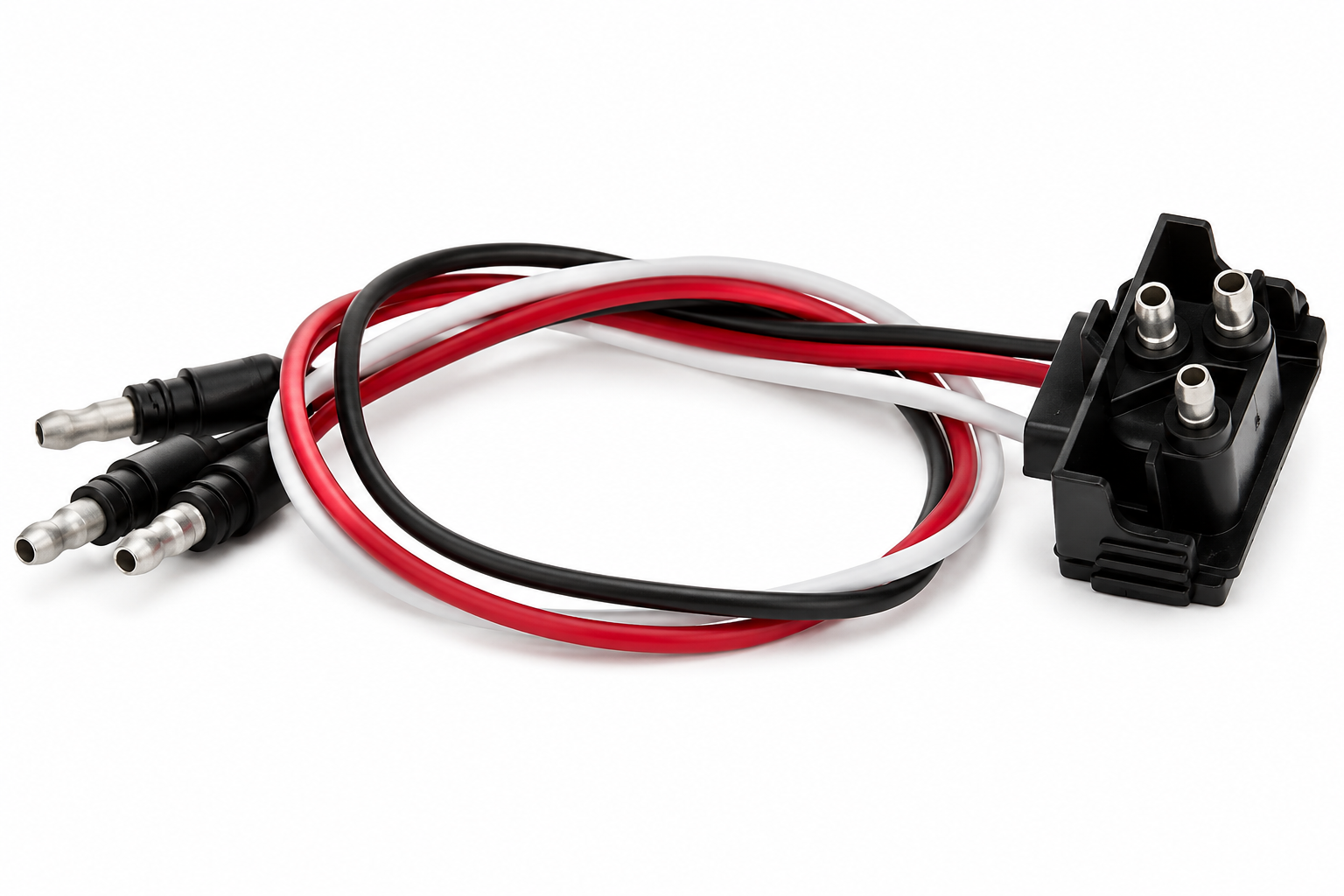

Grote 67002 is a three-wire stop/tail/turn pigtail engineered to plug into Grote male-pin S/T/T lamps such as the 4-inch round and oval Torsion Mount II / SuperNova platforms. It carries the stop/turn, tail, and ground circuits on a single sealed lead so a damaged or aged service pigtail can be swapped without cutting into the harness behind the lamp.
Specifications
| Manufacturer | Grote |
|---|---|
| Part Number | 67002 |
| Type | Stop/Tail/Turn three-wire plug-in pigtail |
| Wires | 3 (stop/turn, tail, ground) |
| Compatible Lamps | Grote male-pin S/T/T lights (4 in. round, oval, etc.) |
| Voltage | 12V |
Cross References
This part replaces or is equivalent to the following part numbers:
- Grote: 67002, 67002-3, 670023
- Also known as: 94707, 96107, GR67002, GRO/67002, PT6107P
Applications
This three-wire pigtail services male-pin S/T/T lamps on:
- Class 6-8 highway tractors and straight trucks (12V)
- Heavy-duty trailers, vocational bodies, and dump chassis with Grote male-pin S/T/T sockets
Confirm lamp pin pattern (male pin vs. PL-3) before ordering.
