Description

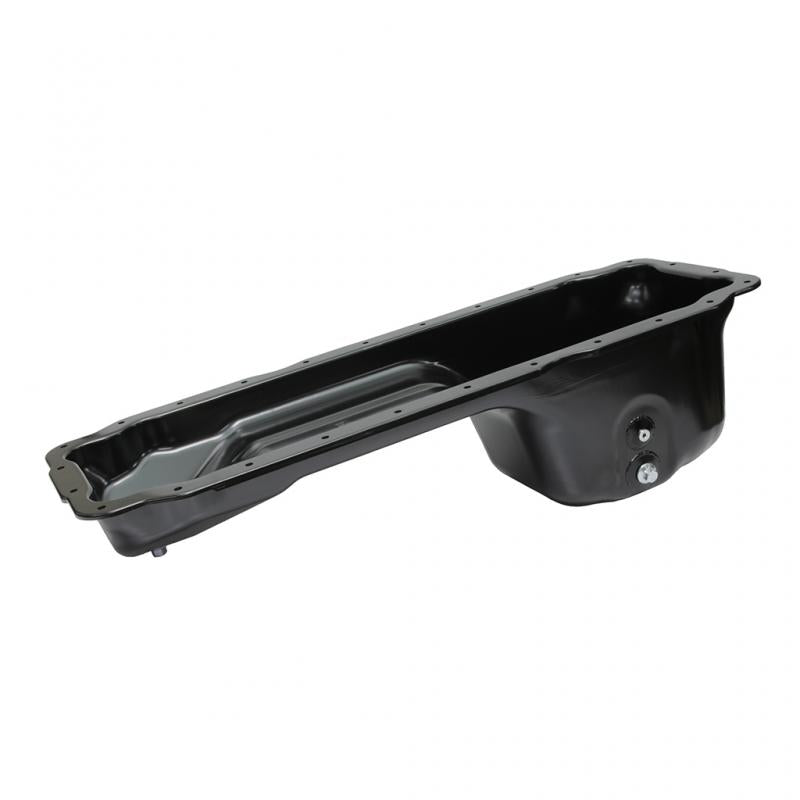

The PAI 141341 is a 44-quart steel oil pan that replaces Cummins 4975061 (supersedes 4973034) on Cummins ISX and ISX12 engines. It is built to fit either front-sump or rear-sump configurations, and ships with the M27x2 drain plug and pan gasket/seal included so the kit goes back together in one box.
Specifications
| Manufacturer | PAI Industries |
|---|---|
| Part Number | 141341 |
| Part Type | Engine Oil Pan |
| Capacity | 44 qt (8.8 gal) |
| Material | Steel |
| Color / Finish | Black |
| Sump Location | Front or rear (fits both) |
| Sump Style | Wet |
| Mounting Holes | 26 |
| Drain Plug | Included, M27 x 2 |
| Gasket / Seal | Included |
| Pickup Tube | Not included |
| Oil Level Sensor Port | No |
| Pan Dimensions (L x W x H) | ~42.25 x 15.75 x 11 in |
| Warranty | 2 years (PAI) |
Cross References
This oil pan replaces or is equivalent to the following part numbers:
- Cummins: 4975061, 4973034
Applications
This oil pan fits the following engines:
- Cummins ISX (15L) — front-sump and rear-sump configurations
- Cummins ISX12 — front-sump and rear-sump configurations
Verify your engine sump location and existing pan dimensions before ordering. The PAI 141341E variant ships without gasket/seals if your installation reuses existing seals.
