Description

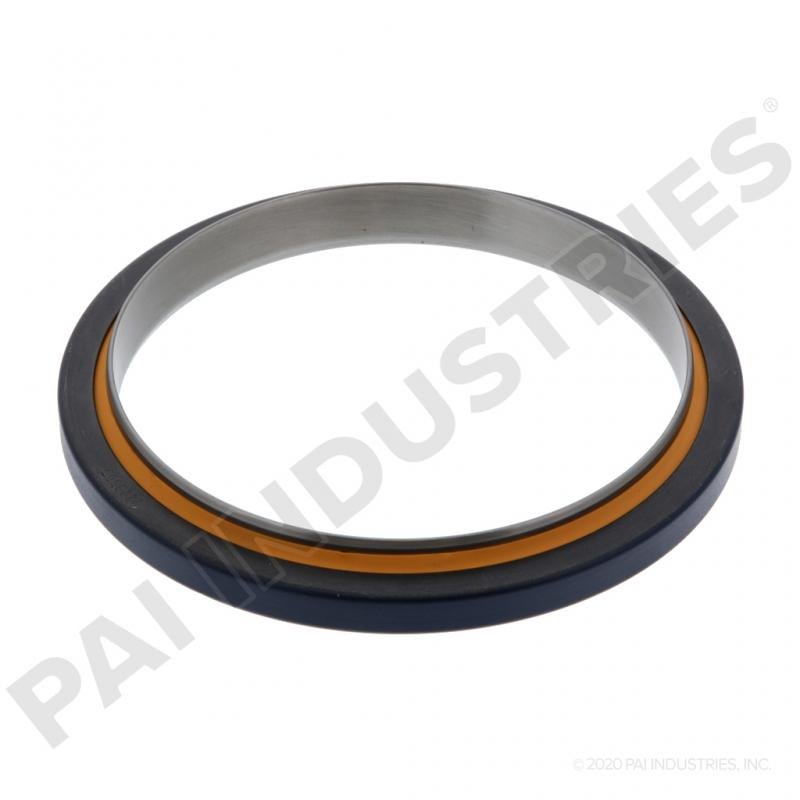

PAI 336015 is a rear crankshaft seal kit for Caterpillar 3406B, 3406C, 3406E, and C15 engines, replacing CAT 222-3909 / 2223909 and supersession chain 115-4109, 7C3570, and 7C3571. The kit includes the rear main oil seal and a matched crankshaft wear ring (sleeve), so a worn crank journal can be re-surfaced with the wear ring before the new lip seal rides on the fresh sealing surface.
Kit Includes
- Rear crankshaft oil seal — PAI 336015 (qty 1)
- Crankshaft wear ring / sleeve (qty 1)
Specifications
| Manufacturer | PAI Industries |
|---|---|
| Part Number | 336015 |
| Part Type | Rear Crankshaft Seal Kit (with Wear Ring) |
| Engine Compatibility | Caterpillar 3406B, 3406C, 3406E, C15 |
| Wear Ring | Included |
| Warranty | 2-Year PAI Industries |
Cross References
This seal kit replaces or is equivalent to the following part numbers:
- Caterpillar: 222-3909 / 2223909, 115-4109 / 1154109, 7C3570, 7C3571
Applications
This seal kit fits the following Caterpillar engine families:
- CAT 3406B (14.6L, mechanical, 1980–1993)
- CAT 3406C (14.6L, mechanical, 1988–1993)
- CAT 3406E (14.6L, electronic, 1993–1999)
- CAT C15 (15.2L, 1999–2010)
Representative trucks and equipment using these engines:
- Freightliner Classic, Classic XL, FLD120, Columbia
- Kenworth W900, T800, T600
- Peterbilt 379, 378, 357, 389
- Western Star 4900, 5900
- CAT off-highway, marine, and industrial 3406 / C15 applications
Verify your engine model and crankshaft serial-number range before installation. Use the supplied wear ring per CAT service procedure when the existing crank seal surface is grooved.
