Description

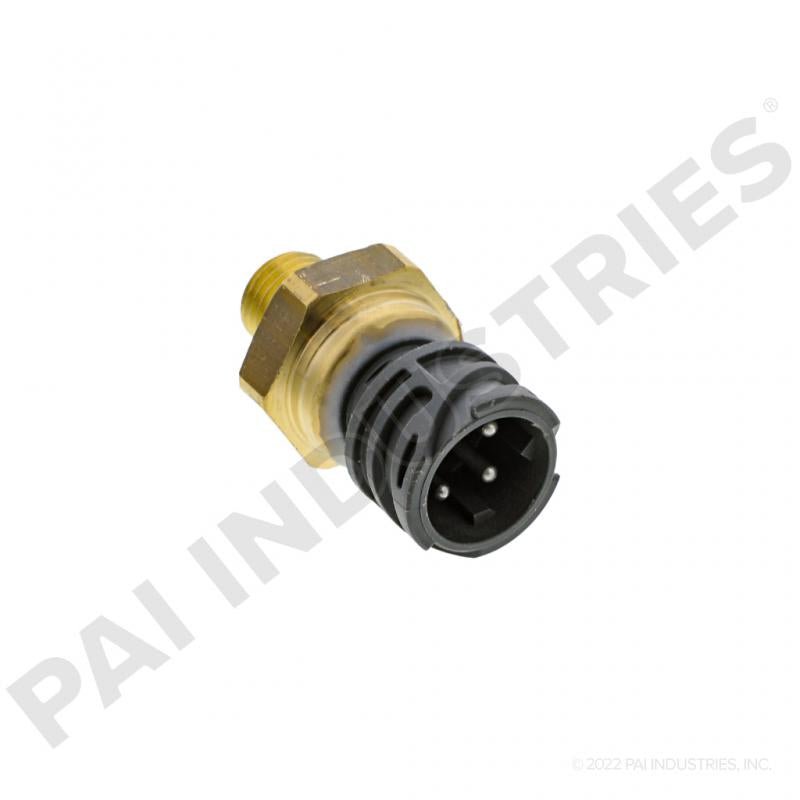

PAI 730387 engine oil pressure sensor for Paccar MX-11 and MX-13 diesel engines (2008–2018 generations). A direct replacement for Paccar 2127356PE and 2041678PE, this 4-pin circular sensor uses an M14x1.5 thread and reports oil-rail pressure to the engine ECU for low-oil-pressure protection and gauge feedback.
Signs You Need a New Oil Pressure Sensor
- Erratic or sticky oil pressure gauge reading
- Active fault codes for oil pressure circuit (e.g., SPN 100)
- Low-oil-pressure warning lamp with verified-normal pressure on a mechanical gauge
- Oil seepage at the sensor body or connector
Specifications
| Manufacturer | PAI Industries |
|---|---|
| Part Number | 730387 |
| Part Type | Engine Oil Pressure Sensor |
| Engine Compatibility | Paccar MX-11, Paccar MX-13 |
| Thread Size | M14 x 1.5 |
| Pin Count | 4 |
| Connector Shape | Circular |
| Overall Length | 1.99 in |
| Color/Finish | Gold / Black |
Cross References
This part replaces or is equivalent to the following part numbers:
- Paccar: 2127356PE
- Paccar: 2041678PE
- Kenworth: 2127356PE
- Peterbilt: 2127356PE
Applications
This oil pressure sensor fits the following engines:
- Paccar MX-13 — 12.9L (2010–2018)
- Paccar MX-11 — 10.8L (2015–2018)
Representative vehicles using these engines:
- Kenworth T660, T680, T800, T880, W900, W990 (2010–2018)
- Peterbilt 365, 367, 386, 389, 567, 579 (2010–2018)
Verify your engine serial number and emissions level before ordering — later EPA21 builds may use a different sensor.
